TinyRender开发记录 1-4

项目介绍

Tiny Renderer or how OpenGL works: software rendering in 500 lines of code 项目地址：https://github.com/ssloy/tinyrenderer In this series of articles, I want to show how OpenGL works by writing its clone (a much simplified one). Surprisingly enough, I often meet people who cannot overcome the initial hurdle of learning OpenGL / DirectX. Thus, I have prepared a short series of lectures, after which my students show quite good renderers. So, the task is formulated as follows: using no third-party libraries (especially graphic ones), get something like this picture:

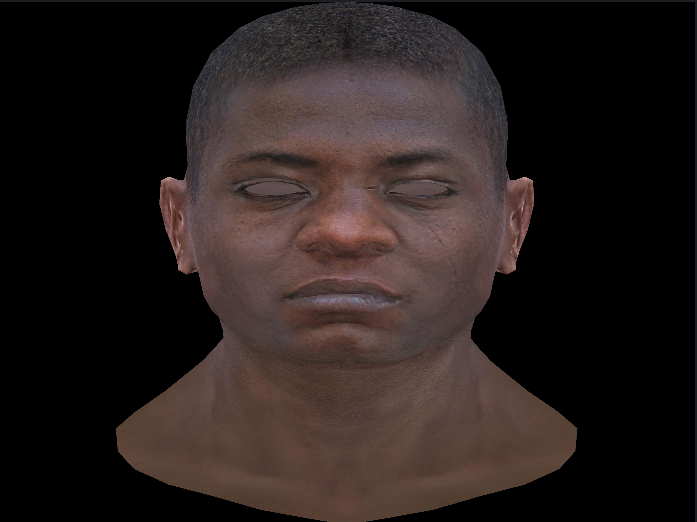

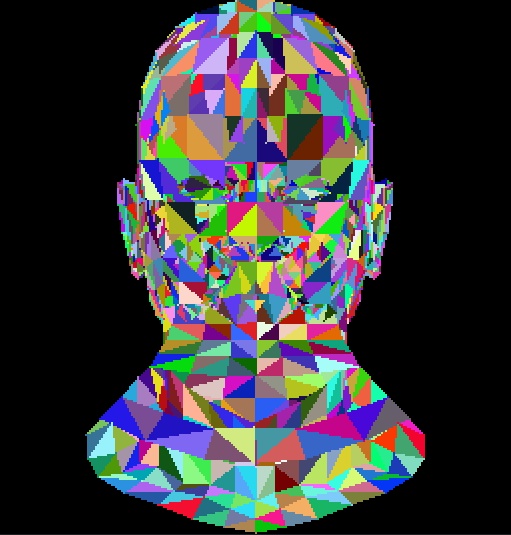

所以学习最终目标是不使用第三方代码，得到下面这种图，建议学完games101后来复习，不过过程很详细，作为入门也是不错的 请添加图片描述

环境搭建

虽然项目旨在不使用第三方库，但提供了图片读取、保存、设置像素点颜色的代码 tagimage.h

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

#pragma once
#include <cstdint>
#include <fstream>
#include <vector>

#pragma pack(push,1)
struct TGAHeader {
    std::uint8_t  idlength{};
    std::uint8_t  colormaptype{};
    std::uint8_t  datatypecode{};
    std::uint16_t colormaporigin{};
    std::uint16_t colormaplength{};
    std::uint8_t  colormapdepth{};
    std::uint16_t x_origin{};
    std::uint16_t y_origin{};
    std::uint16_t width{};
    std::uint16_t height{};
    std::uint8_t  bitsperpixel{};
    std::uint8_t  imagedescriptor{};
};
#pragma pack(pop)

struct TGAColor {
    std::uint8_t bgra[4] = {0,0,0,0};
    std::uint8_t bytespp = {0};

    TGAColor() = default;
    TGAColor(const std::uint8_t R, const std::uint8_t G, const std::uint8_t B, const std::uint8_t A=255) : bgra{B,G,R,A}, bytespp(4) { }
    TGAColor(const std::uint8_t *p, const std::uint8_t bpp) : bytespp(bpp) {
        for (int i=bpp; i--; bgra[i] = p[i]);
    }
    std::uint8_t& operator[](const int i) { return bgra[i]; }
};

struct TGAImage {
    enum Format { GRAYSCALE=1, RGB=3, RGBA=4 };

    TGAImage() = default;
    TGAImage(const int w, const int h, const int bpp);
    bool  read_tga_file(const std::string filename);
    bool write_tga_file(const std::string filename, const bool vflip=true, const bool rle=true) const;
    void flip_horizontally();
    void flip_vertically();
    TGAColor get(const int x, const int y) const;
    void set(const int x, const int y, const TGAColor &c);
    int width()  const;
    int height() const;
private:
    bool   load_rle_data(std::ifstream &in);
    bool unload_rle_data(std::ofstream &out) const;

    int w   = 0;
    int h   = 0;
    int bpp = 0;
    std::vector<std::uint8_t> data = {};
};

tgaimage.cpp

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238

#include <iostream>
#include <cstring>
#include "tgaimage.h"

TGAImage::TGAImage(const int w, const int h, const int bpp) : w(w), h(h), bpp(bpp), data(w*h*bpp, 0) {}

bool TGAImage::read_tga_file(const std::string filename) {
    std::ifstream in;
    in.open (filename, std::ios::binary);
    if (!in.is_open()) {
        std::cerr << "can't open file " << filename << "\n";
        in.close();
        return false;
    }
    TGAHeader header;
    in.read(reinterpret_cast<char *>(&header), sizeof(header));
    if (!in.good()) {
        in.close();
        std::cerr << "an error occured while reading the header\n";
        return false;
    }
    w   = header.width;
    h   = header.height;
    bpp = header.bitsperpixel>>3;
    if (w<=0 || h<=0 || (bpp!=GRAYSCALE && bpp!=RGB && bpp!=RGBA)) {
        in.close();
        std::cerr << "bad bpp (or width/height) value\n";
        return false;
    }
    size_t nbytes = bpp*w*h;
    data = std::vector<std::uint8_t>(nbytes, 0);
    if (3==header.datatypecode || 2==header.datatypecode) {
        in.read(reinterpret_cast<char *>(data.data()), nbytes);
        if (!in.good()) {
            in.close();
            std::cerr << "an error occured while reading the data\n";
            return false;
        }
    } else if (10==header.datatypecode||11==header.datatypecode) {
        if (!load_rle_data(in)) {
            in.close();
            std::cerr << "an error occured while reading the data\n";
            return false;
        }
    } else {
        in.close();
        std::cerr << "unknown file format " << (int)header.datatypecode << "\n";
        return false;
    }
    if (!(header.imagedescriptor & 0x20))
        flip_vertically();
    if (header.imagedescriptor & 0x10)
        flip_horizontally();
    std::cerr << w << "x" << h << "/" << bpp*8 << "\n";
    in.close();
    return true;
}

bool TGAImage::load_rle_data(std::ifstream &in) {
    size_t pixelcount = w*h;
    size_t currentpixel = 0;
    size_t currentbyte  = 0;
    TGAColor colorbuffer;
    do {
        std::uint8_t chunkheader = 0;
        chunkheader = in.get();
        if (!in.good()) {
            std::cerr << "an error occured while reading the data\n";
            return false;
        }
        if (chunkheader<128) {
            chunkheader++;
            for (int i=0; i<chunkheader; i++) {
                in.read(reinterpret_cast<char *>(colorbuffer.bgra), bpp);
                if (!in.good()) {
                    std::cerr << "an error occured while reading the header\n";
                    return false;
                }
                for (int t=0; t<bpp; t++)
                    data[currentbyte++] = colorbuffer.bgra[t];
                currentpixel++;
                if (currentpixel>pixelcount) {
                    std::cerr << "Too many pixels read\n";
                    return false;
                }
            }
        } else {
            chunkheader -= 127;
            in.read(reinterpret_cast<char *>(colorbuffer.bgra), bpp);
            if (!in.good()) {
                std::cerr << "an error occured while reading the header\n";
                return false;
            }
            for (int i=0; i<chunkheader; i++) {
                for (int t=0; t<bpp; t++)
                    data[currentbyte++] = colorbuffer.bgra[t];
                currentpixel++;
                if (currentpixel>pixelcount) {
                    std::cerr << "Too many pixels read\n";
                    return false;
                }
            }
        }
    } while (currentpixel < pixelcount);
    return true;
}

bool TGAImage::write_tga_file(const std::string filename, const bool vflip, const bool rle) const {
    constexpr std::uint8_t developer_area_ref[4] = {0, 0, 0, 0};
    constexpr std::uint8_t extension_area_ref[4] = {0, 0, 0, 0};
    constexpr std::uint8_t footer[18] = {'T','R','U','E','V','I','S','I','O','N','-','X','F','I','L','E','.','\0'};
    std::ofstream out;
    out.open (filename, std::ios::binary);
    if (!out.is_open()) {
        std::cerr << "can't open file " << filename << "\n";
        out.close();
        return false;
    }
    TGAHeader header;
    header.bitsperpixel = bpp<<3;
    header.width  = w;
    header.height = h;
    header.datatypecode = (bpp==GRAYSCALE?(rle?11:3):(rle?10:2));
    header.imagedescriptor = vflip ? 0x00 : 0x20; // top-left or bottom-left origin
    out.write(reinterpret_cast<const char *>(&header), sizeof(header));
    if (!out.good()) {
        out.close();
        std::cerr << "can't dump the tga file\n";
        return false;
    }
    if (!rle) {
        out.write(reinterpret_cast<const char *>(data.data()), w*h*bpp);
        if (!out.good()) {
            std::cerr << "can't unload raw data\n";
            out.close();
            return false;
        }
    } else if (!unload_rle_data(out)) {
        out.close();
        std::cerr << "can't unload rle data\n";
        return false;
    }
    out.write(reinterpret_cast<const char *>(developer_area_ref), sizeof(developer_area_ref));
    if (!out.good()) {
        std::cerr << "can't dump the tga file\n";
        out.close();
        return false;
    }
    out.write(reinterpret_cast<const char *>(extension_area_ref), sizeof(extension_area_ref));
    if (!out.good()) {
        std::cerr << "can't dump the tga file\n";
        out.close();
        return false;
    }
    out.write(reinterpret_cast<const char *>(footer), sizeof(footer));
    if (!out.good()) {
        std::cerr << "can't dump the tga file\n";
        out.close();
        return false;
    }
    out.close();
    return true;
}

// TODO: it is not necessary to break a raw chunk for two equal pixels (for the matter of the resulting size)
bool TGAImage::unload_rle_data(std::ofstream &out) const {
    const std::uint8_t max_chunk_length = 128;
    size_t npixels = w*h;
    size_t curpix = 0;
    while (curpix<npixels) {
        size_t chunkstart = curpix*bpp;
        size_t curbyte = curpix*bpp;
        std::uint8_t run_length = 1;
        bool raw = true;
        while (curpix+run_length<npixels && run_length<max_chunk_length) {
            bool succ_eq = true;
            for (int t=0; succ_eq && t<bpp; t++)
                succ_eq = (data[curbyte+t]==data[curbyte+t+bpp]);
            curbyte += bpp;
            if (1==run_length)
                raw = !succ_eq;
            if (raw && succ_eq) {
                run_length--;
                break;
            }
            if (!raw && !succ_eq)
                break;
            run_length++;
        }
        curpix += run_length;
        out.put(raw?run_length-1:run_length+127);
        if (!out.good()) {
            std::cerr << "can't dump the tga file\n";
            return false;
        }
        out.write(reinterpret_cast<const char *>(data.data()+chunkstart), (raw?run_length*bpp:bpp));
        if (!out.good()) {
            std::cerr << "can't dump the tga file\n";
            return false;
        }
    }
    return true;
}

TGAColor TGAImage::get(const int x, const int y) const {
    if (!data.size() || x<0 || y<0 || x>=w || y>=h)
        return {};
    return TGAColor(data.data()+(x+y*w)*bpp, bpp);
}

void TGAImage::set(int x, int y, const TGAColor &c) {
    if (!data.size() || x<0 || y<0 || x>=w || y>=h) return;
    memcpy(data.data()+(x+y*w)*bpp, c.bgra, bpp);
}

void TGAImage::flip_horizontally() {
    int half = w>>1;
    for (int i=0; i<half; i++)
        for (int j=0; j<h; j++)
            for (int b=0; b<bpp; b++)
                std::swap(data[(i+j*w)*bpp+b], data[(w-1-i+j*w)*bpp+b]);
}

void TGAImage::flip_vertically() {
    int half = h>>1;
    for (int i=0; i<w; i++)
        for (int j=0; j<half; j++)
            for (int b=0; b<bpp; b++)
                std::swap(data[(i+j*w)*bpp+b], data[(i+(h-1-j)*w)*bpp+b]);
}

int TGAImage::width() const {
    return w;
}

int TGAImage::height() const {
    return h;
}

写一个测试来确保环境正常

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

#include "tgaimage.h"
const TGAColor white = TGAColor(255, 255, 255, 255);
const TGAColor red   = TGAColor(255, 0,   0,   255);
int main(int argc, char** argv) {
    TGAImage image(100, 100, TGAImage::RGB);
    image.set(52, 41, red);
    image.flip_vertically(); // 垂直方向翻转图片，反转y坐标，作者解释是希望图片的原点在左下角，但很多库原点都在左上角
    image.write_tga_file("output.tga");
    return 0;
}

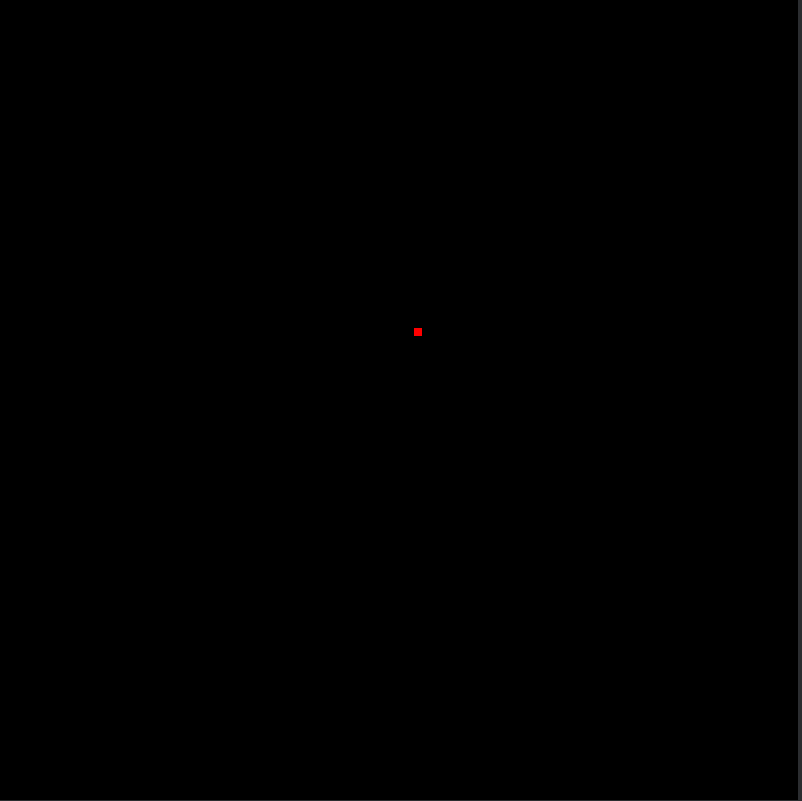

运行后图片如下 在这里插入图片描述

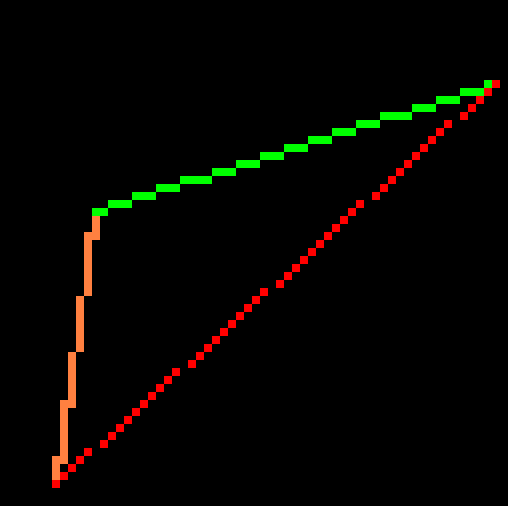

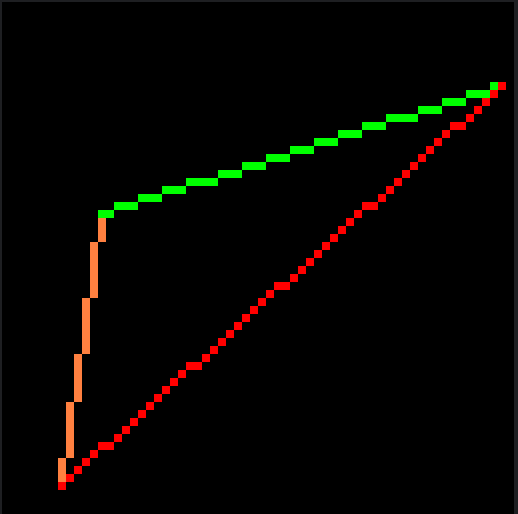

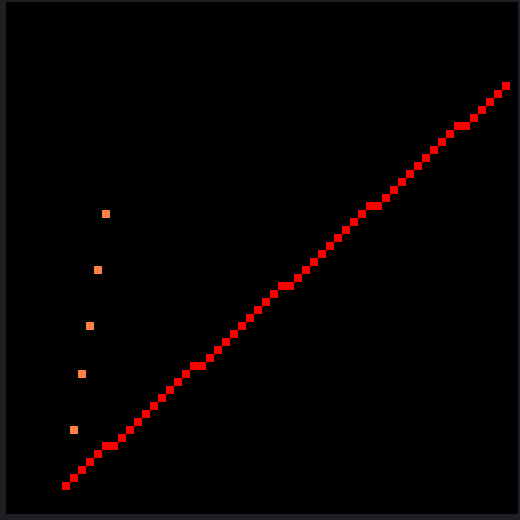

Lesson 1: Bresenham’s Line Drawing Algorithm（画线算法）

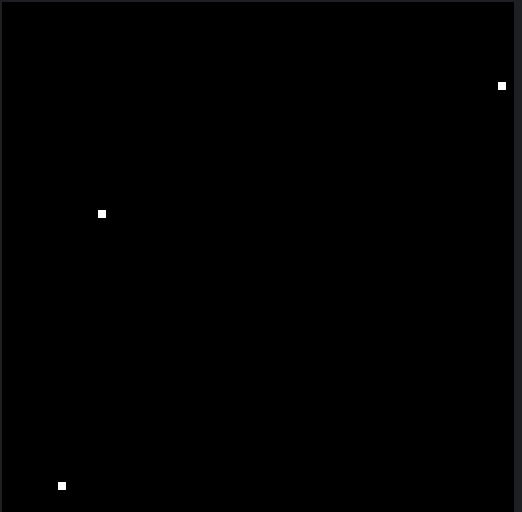

首先进行初始化，在图上标记三个位置

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

#include "tgaimage.h"
constexpr TGAColor white   = {255, 255, 255, 255}; // attention, BGRA order
constexpr TGAColor green   = {  0, 255,   0, 255};
constexpr TGAColor red     = {  255,   0, 0, 255};
constexpr TGAColor blue    = {255, 128,  64, 255};
constexpr TGAColor yellow  = {  0, 200, 255, 255};
int main(int argc, char** argv) {
    constexpr int width  = 64;
    constexpr int height = 64;
    TGAImage framebuffer(width, height, TGAImage::RGB);
    int ax =  7, ay =  3;
    int bx = 12, by = 37;
    int cx = 62, cy = 53;
    framebuffer.set(ax, ay, white);
    framebuffer.set(bx, by, white);
    framebuffer.set(cx, cy, white);
    framebuffer.write_tga_file("framebuffer.tga");
    return 0;
}

得到结果如下 请添加图片描述 首先来学习下如何在像素上画一条线 第一次尝试：想象用参数t来表示的一个在$x_a和x_b$之间的点$(x(t),y(t))$

$$ \begin{cases} x(t) = a_x + t \cdot (b_x - a_x) \\ y(t) = a_y + t \cdot (b_y - a_y) \end{cases} $$

如果我们变换一下形式就会发现，这就是插值的公式

$$ \begin{cases} x(t) = (1-t) \cdot a_x + t \cdot b_x \\ y(t) = (1-t) \cdot a_y + t \cdot b_y \end{cases} $$

下面来尝试一下通过控制t来绘制这条直线

1
2
3
4
5
6
7

void drawLine_first(int x1,int y1,int x2,int y2,TGAImage &img,TGAColor color){
    for(float t = 0;t<=1;t+=0.02){
        int x = std::round(x1 + t * (x2-x1)); // round会进行四舍五入
        int y = std::round(y1 + t * (y2-y1));
        img.set(x,y,color);
    }
}

请添加图片描述

考虑左下角的a点和右上角的c点，如果我从a向c绘制一次，再从c向a绘制一次，结果如下 请添加图片描述

图中能明显看出问题，一是在x上有缝隙，二是不同的绘制方向结果是不同的， 第三另外t步长的设置也不容易控制 接下来看第二种尝试，代码的改变写在了注释中

1
2
3
4
5
6
7
8

void drawLine_Second(int ax, int ay, int bx, int by, TGAImage &img, TGAColor color){
    for (int x = ax ; x<= bx; x++) { // 不再以t控制，而是以x的进行进行控制，保证了水平方向上不会有空隙
    	// 如果不加强制转换，当分子分母都是整数时，计算结果的小数部分会被截断
        float t = (x-ax)/static_cast<float>(bx-ax); // 变换了形式，表示出当x移动一格时，t是多少，
        int y = std::round( ay + (by-ay)*t );
        img.set(x, y, color);
    }
}

这里碰到了Cpp的static_cast，顺便学习一下是什么 隐式转换（Implicit Conversion）：编译器或解释器‌自动完成‌的类型转换，无需程序员显式指定。 显式转换（Explicit Conversion）：程序员‌主动指定‌的类型转换，通常通过语法或函数强制实现。 static_cast是 C++ 中一种显式类型转换操作符，‌用于在编译时进行类型转换，‌适用场景‌：明确的、安全的类型转换（如基本类型转换、向上转换、void* 转换），不用c语言风格的强制转换是为了规避风险。 从下图看到问题2，3已经解决了，原本有的问题1空隙也没有了，但是出现了新的很大的空隙，甚至一条线直接消失了 请添加图片描述 线消失比较好解决，原因就是从右上角向左下角画线，if就进不去

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

void drawLine_Second(int ax, int ay, int bx, int by, TGAImage &img, TGAColor color){
    if (ax>bx) { // make it left−to−right
        std::swap(ax, bx);
        std::swap(ay, by);
    }
    for (int x = ax ; x<= bx; x++) { // 不再以t控制，而是以x的进行进行控制，保证了水平方向上不会有空隙
        // 如果不加强制转换，当分子分母都是整数时，计算结果的小数部分会被截断
        float t = (x-ax)/static_cast<float>(bx-ax); // 变换了形式，表示出当x移动一格时，t是多少，
        int y = std::round( ay + (by-ay)*t );
        img.set(x, y, color);
    }
}

请添加图片描述 下面就要解决a->b这么大空隙了，这个问题就是斜率大的线段的采样不足，因为x只走了几步就到了，也就只会画出几个点 接下来进行第三次尝试，解决思路就是如果斜率太大，就从y进行for，而不是x，教程中的解决思路十分巧妙，如果斜率太大，就交换x坐标和y坐标，同时绘制时绘制坐标变成$(y,x)$

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

// 最终版本
void drawLine(int ax, int ay, int bx, int by, TGAImage &framebuffer, TGAColor color) {
    bool steep = std::abs(ax-bx) < std::abs(ay-by);
    if (steep) { // if the drawLine is steep, we transpose the image
        std::swap(ax, ay);
        std::swap(bx, by);
    }
    if (ax>bx) { // make it left−to−right
        std::swap(ax, bx);
        std::swap(ay, by);
    }
    int y = ay;
    int ierror = 0;
    for (int x=ax; x<=bx; x++) {
        if (steep) // if transposed, de−transpose
            framebuffer.set(y, x, color);
        else
            framebuffer.set(x, y, color);
        ierror += 2 * std::abs(by-ay);
        y += (by > ay ? 1 : -1) * (ierror > bx - ax);
        ierror -= 2 * (bx-ax)   * (ierror > bx - ax);
    }
}

请添加图片描述 至此就完成了比较好的效果的直线绘制，第四次尝试是如何优化算法的运行速度，这里就不说了，直接上他最终的优化代码作为后续使用，但是走样（锯齿）问题没有解决，这里不详细说，后边课程肯定会涉及到。

Lesson 2: Triangle rasterization 三角形光栅化

本节课目的是画一个实心的三角形（上节课只画了边） 首先提供一个画线框三角形的代码

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

constexpr int width  = 128;
constexpr int height = 128;
// 绘制一个三角形
void drawTriangle(int ax, int ay, int bx, int by, int cx, int cy, TGAImage &framebuffer, TGAColor color) {
    drawLine(ax, ay, bx, by, framebuffer, color);
    drawLine(bx, by, cx, cy, framebuffer, color);
    drawLine(cx, cy, ax, ay, framebuffer, color);
}
// 绘制三个三角形进行测试
int main(int argc, char** argv) {
    TGAImage framebuffer(width, height, TGAImage::RGB);
    drawTriangle(  7, 45, 35, 100, 45,  60, framebuffer, red);
    drawTriangle(120, 35, 90,   5, 45, 110, framebuffer, white);
    drawTriangle(115, 83, 80,  90, 85, 120, framebuffer, green);
    framebuffer.write_tga_file("framebuffer.tga");
    return 0;
}

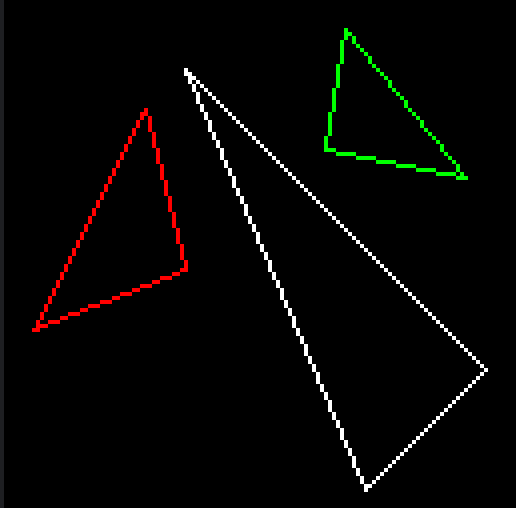

请添加图片描述

填充三角形需要做的事情：

  • 它应该简单快捷
  • 它应该是对称的 —— 输出不应该依赖于传递给函数的顶点顺序
  • 如果两个三角形共享两个顶点，由于光栅化舍入误差，它们之间不应该有间隙

Scanline rendering 线性扫描

这块不是很想实现，因为学过games101后，已经知道更好的方法是什么了😂，这里参考别的博客看看原理是啥吧。

https://blog.csdn.net/qq_42987967/article/details/124831459

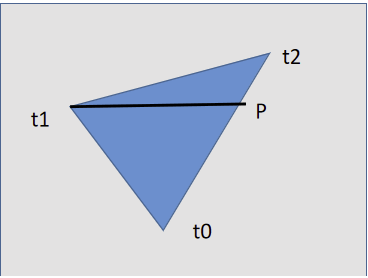

思路就是先对顶点y坐标进行排序，并从中间顶点水平切一刀，这样扫描时比例变化是正常的不会突然反向，交点A沿t0到t2的主斜边移动，B沿t0到t1的侧边移动，移动过程中填充内部的像素 请添加图片描述

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

void triangle(Vec2i t0, Vec2i t1, Vec2i t2, TGAImage &image, TGAColor color) {
    // sort the vertices, t0, t1, t2 lower−to−upper (bubblesort yay!)
    if (t0.y>t1.y) std::swap(t0, t1);
    if (t0.y>t2.y) std::swap(t0, t2);
    if (t1.y>t2.y) std::swap(t1, t2);
    int total_height = t2.y-t0.y;
    for (int y=t0.y; y<=t1.y; y++) {
        int segment_height = t1.y-t0.y+1;
        float alpha = (float)(y-t0.y)/total_height;
        float beta  = (float)(y-t0.y)/segment_height; // be careful with divisions by zero
        Vec2i A = t0 + (t2-t0)*alpha;
        Vec2i B = t0 + (t1-t0)*beta;
        if (A.x>B.x) std::swap(A, B);
        for (int j=A.x; j<=B.x; j++) {
            image.set(j, y, color); // attention, due to int casts t0.y+i != A.y
        }
    }
    for (int y=t1.y; y<=t2.y; y++) {
        int segment_height =  t2.y-t1.y+1;
        float alpha = (float)(y-t0.y)/total_height;
        float beta  = (float)(y-t1.y)/segment_height; // be careful with divisions by zero
        Vec2i A = t0 + (t2-t0)*alpha;
        Vec2i B = t1 + (t2-t1)*beta;
        if (A.x>B.x) std::swap(A, B);
        for (int j=A.x; j<=B.x; j++) {
            image.set(j, y, color); // attention, due to int casts t0.y+i != A.y
        }
    }
}

Modern rasterization approach 现代栅格化方法

基本思路就是用包围盒围住三角形，减少需要遍历的三角形数量，之后遍历盒子中每个像素，判断是否在三角形内部，伪代码如下

1
2
3
4
5
6
7
8

triangle(vec2 points[3]) {
    vec2 bbox[2] = find_bounding_box(points);
    for (each pixel in the bounding box) {
        if (inside(points, pixel)) {
            put_pixel(pixel);
        }
    }
}

首先是包围盒的建立，其实就找三个顶点的最大值和最小值，就能画出一个围住三角形最小的矩形

1
2
3
4

    int bbminx = std::min(std::min(ax, bx), cx); // bounding box for the triangle
    int bbminy = std::min(std::min(ay, by), cy); // defined by its top left and bottom right corners
    int bbmaxx = std::max(std::max(ax, bx), cx);
    int bbmaxy = std::max(std::max(ay, by), cy);

请添加图片描述 之后就是剔除不在三角形内部的像素，在games101提供的方法是用像素坐标叉乘三条边顺序组成的向量，如果叉乘结果都在一个方向，那这个像素点就在三角形内部，在这个教程中并不是这样做的，它是利用重心坐标，计算出一个点对于这个三角形的重心坐标$(\alpha,\beta,\gamma)$，只要有一个是负数，就表示不再三角形内，那就用他这种方法吧。重心坐标反映的是划分为三个小三角形的面积比，如果点在三角形外，那面积算出来就成负数了。 首先提供一个算三角形面积的函数

1
2
3

double signed_triangle_area(int ax, int ay, int bx, int by, int cx, int cy) {
    return .5*((by-ay)*(bx+ax) + (cy-by)*(cx+bx) + (ay-cy)*(ax+cx));
}

下来就可以用面积比来求重心坐标了

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

#pragma omp parallel for
    for (int x=bbminx; x<=bbmaxx; x++) {
        for (int y=bbminy; y<=bbmaxy; y++) {
            double alpha = signed_triangle_area(x, y, bx, by, cx, cy) / total_area;
            double beta  = signed_triangle_area(x, y, cx, cy, ax, ay) / total_area;
            double gamma = signed_triangle_area(x, y, ax, ay, bx, by) / total_area;
            if (alpha<0 || beta<0 || gamma<0) continue; // negative barycentric coordinate => the pixel is outside the triangle
            framebuffer.set(x, y, color);
        }
    }
}

#pragma omp parallel for是OpenMP中的一个指令，用于并行化for循环。OpenMP是一种并行编程模型，可以在支持OpenMP的编译器上使用 最终的三角形绘制如下

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

// 绘制一个三角形
void drawTriangle(int ax, int ay, int bx, int by, int cx, int cy, TGAImage &framebuffer, TGAColor color) {
    int bbminx = std::min(std::min(ax, bx), cx); // bounding box for the triangle
    int bbminy = std::min(std::min(ay, by), cy); // defined by its top left and bottom right corners
    int bbmaxx = std::max(std::max(ax, bx), cx);
    int bbmaxy = std::max(std::max(ay, by), cy);
    double total_area = signed_triangle_area(ax, ay, bx, by, cx, cy);

#pragma omp parallel for
    for (int x=bbminx; x<=bbmaxx; x++) {
        for (int y=bbminy; y<=bbmaxy; y++) {
            double alpha = signed_triangle_area(x, y, bx, by, cx, cy) / total_area;
            double beta  = signed_triangle_area(x, y, cx, cy, ax, ay) / total_area;
            double gamma = signed_triangle_area(x, y, ax, ay, bx, by) / total_area;
            if (alpha<0 || beta<0 || gamma<0) continue; // negative barycentric coordinate => the pixel is outside the triangle
            framebuffer.set(x, y, color);
        }
    }
}

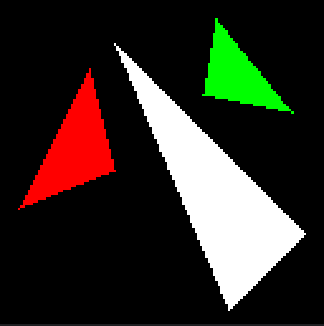

请添加图片描述

back-face culling 背面剔除

一般来说法线背对相机或光线方向的平面可认为是没用的，可以不用绘制将其剔除以减少运算量。原理是如果正面的三角形都是顺时针，那背面的都是逆时针，另外一种方法是计算三角形法向量与摄像机的点乘，小于0说明它是背对的。 在第2课中使用的是计算三角形的面积，下面这个代码是带符号的，所以负的面积说明三角形是背对的。

1
2
3

double signed_triangle_area(int ax, int ay, int bx, int by, int cx, int cy) {
    return .5*((by-ay)*(bx+ax) + (cy-by)*(cx+bx) + (ay-cy)*(ax+cx));
}

在这里引入向量和模型导入的函数 vector.h

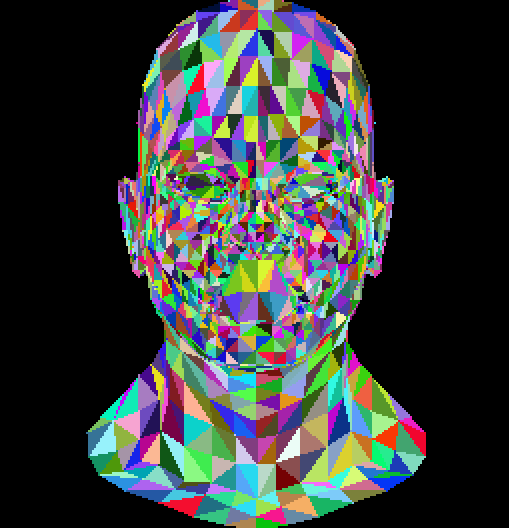

生成下图，可以看出来把所有三角形全画出来，脸部轮廓都不见了 请添加图片描述 修改三角形绘制函数，如果计算出来的三角形面积是负数，就直接不绘制了，这里设置小于1，是把面积太小的三角形直接省略了

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

void drawTriangle(int ax, int ay, int bx, int by, int cx, int cy, TGAImage &framebuffer, TGAColor color) {
    int bbminx = std::min(std::min(ax, bx), cx);
    int bbminy = std::min(std::min(ay, by), cy);
    int bbmaxx = std::max(std::max(ax, bx), cx);
    int bbmaxy = std::max(std::max(ay, by), cy);
    double total_area = signed_triangle_area(ax, ay, bx, by, cx, cy);
    if (total_area<1) return;

#pragma omp parallel for
    for (int x=bbminx; x<=bbmaxx; x++) {
        for (int y=bbminy; y<=bbmaxy; y++) {
            double alpha = signed_triangle_area(x, y, bx, by, cx, cy) / total_area;
            double beta  = signed_triangle_area(x, y, cx, cy, ax, ay) / total_area;
            double gamma = signed_triangle_area(x, y, ax, ay, bx, by) / total_area;
            if (alpha<0 || beta<0 || gamma<0) continue;
            framebuffer.set(x, y, color);
        }
    }
}

修改后明显可以看出脸部轮廓出来了

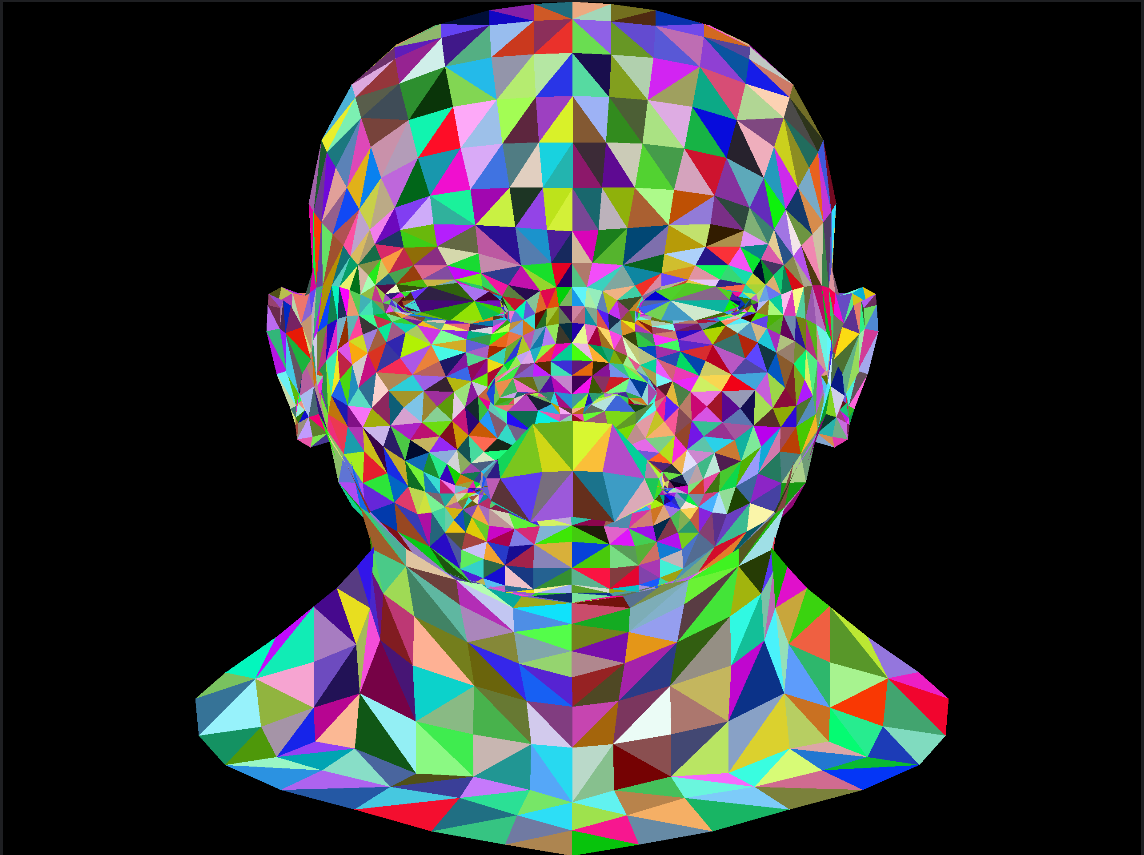

请添加图片描述 使用2k分辨率，效果更好了 请添加图片描述

Lesson 3: Hidden faces removal (z buffer)

首先介绍一下代码变动 模型获取使用开源库

   1
   2
   3
   4
   5
   6
   7
   8
   9
  10
  11
  12
  13
  14
  15
  16
  17
  18
  19
  20
  21
  22
  23
  24
  25
  26
  27
  28
  29
  30
  31
  32
  33
  34
  35
  36
  37
  38
  39
  40
  41
  42
  43
  44
  45
  46
  47
  48
  49
  50
  51
  52
  53
  54
  55
  56
  57
  58
  59
  60
  61
  62
  63
  64
  65
  66
  67
  68
  69
  70
  71
  72
  73
  74
  75
  76
  77
  78
  79
  80
  81
  82
  83
  84
  85
  86
  87
  88
  89
  90
  91
  92
  93
  94
  95
  96
  97
  98
  99
 100
 101
 102
 103
 104
 105
 106
 107
 108
 109
 110
 111
 112
 113
 114
 115
 116
 117
 118
 119
 120
 121
 122
 123
 124
 125
 126
 127
 128
 129
 130
 131
 132
 133
 134
 135
 136
 137
 138
 139
 140
 141
 142
 143
 144
 145
 146
 147
 148
 149
 150
 151
 152
 153
 154
 155
 156
 157
 158
 159
 160
 161
 162
 163
 164
 165
 166
 167
 168
 169
 170
 171
 172
 173
 174
 175
 176
 177
 178
 179
 180
 181
 182
 183
 184
 185
 186
 187
 188
 189
 190
 191
 192
 193
 194
 195
 196
 197
 198
 199
 200
 201
 202
 203
 204
 205
 206
 207
 208
 209
 210
 211
 212
 213
 214
 215
 216
 217
 218
 219
 220
 221
 222
 223
 224
 225
 226
 227
 228
 229
 230
 231
 232
 233
 234
 235
 236
 237
 238
 239
 240
 241
 242
 243
 244
 245
 246
 247
 248
 249
 250
 251
 252
 253
 254
 255
 256
 257
 258
 259
 260
 261
 262
 263
 264
 265
 266
 267
 268
 269
 270
 271
 272
 273
 274
 275
 276
 277
 278
 279
 280
 281
 282
 283
 284
 285
 286
 287
 288
 289
 290
 291
 292
 293
 294
 295
 296
 297
 298
 299
 300
 301
 302
 303
 304
 305
 306
 307
 308
 309
 310
 311
 312
 313
 314
 315
 316
 317
 318
 319
 320
 321
 322
 323
 324
 325
 326
 327
 328
 329
 330
 331
 332
 333
 334
 335
 336
 337
 338
 339
 340
 341
 342
 343
 344
 345
 346
 347
 348
 349
 350
 351
 352
 353
 354
 355
 356
 357
 358
 359
 360
 361
 362
 363
 364
 365
 366
 367
 368
 369
 370
 371
 372
 373
 374
 375
 376
 377
 378
 379
 380
 381
 382
 383
 384
 385
 386
 387
 388
 389
 390
 391
 392
 393
 394
 395
 396
 397
 398
 399
 400
 401
 402
 403
 404
 405
 406
 407
 408
 409
 410
 411
 412
 413
 414
 415
 416
 417
 418
 419
 420
 421
 422
 423
 424
 425
 426
 427
 428
 429
 430
 431
 432
 433
 434
 435
 436
 437
 438
 439
 440
 441
 442
 443
 444
 445
 446
 447
 448
 449
 450
 451
 452
 453
 454
 455
 456
 457
 458
 459
 460
 461
 462
 463
 464
 465
 466
 467
 468
 469
 470
 471
 472
 473
 474
 475
 476
 477
 478
 479
 480
 481
 482
 483
 484
 485
 486
 487
 488
 489
 490
 491
 492
 493
 494
 495
 496
 497
 498
 499
 500
 501
 502
 503
 504
 505
 506
 507
 508
 509
 510
 511
 512
 513
 514
 515
 516
 517
 518
 519
 520
 521
 522
 523
 524
 525
 526
 527
 528
 529
 530
 531
 532
 533
 534
 535
 536
 537
 538
 539
 540
 541
 542
 543
 544
 545
 546
 547
 548
 549
 550
 551
 552
 553
 554
 555
 556
 557
 558
 559
 560
 561
 562
 563
 564
 565
 566
 567
 568
 569
 570
 571
 572
 573
 574
 575
 576
 577
 578
 579
 580
 581
 582
 583
 584
 585
 586
 587
 588
 589
 590
 591
 592
 593
 594
 595
 596
 597
 598
 599
 600
 601
 602
 603
 604
 605
 606
 607
 608
 609
 610
 611
 612
 613
 614
 615
 616
 617
 618
 619
 620
 621
 622
 623
 624
 625
 626
 627
 628
 629
 630
 631
 632
 633
 634
 635
 636
 637
 638
 639
 640
 641
 642
 643
 644
 645
 646
 647
 648
 649
 650
 651
 652
 653
 654
 655
 656
 657
 658
 659
 660
 661
 662
 663
 664
 665
 666
 667
 668
 669
 670
 671
 672
 673
 674
 675
 676
 677
 678
 679
 680
 681
 682
 683
 684
 685
 686
 687
 688
 689
 690
 691
 692
 693
 694
 695
 696
 697
 698
 699
 700
 701
 702
 703
 704
 705
 706
 707
 708
 709
 710
 711
 712
 713
 714
 715
 716
 717
 718
 719
 720
 721
 722
 723
 724
 725
 726
 727
 728
 729
 730
 731
 732
 733
 734
 735
 736
 737
 738
 739
 740
 741
 742
 743
 744
 745
 746
 747
 748
 749
 750
 751
 752
 753
 754
 755
 756
 757
 758
 759
 760
 761
 762
 763
 764
 765
 766
 767
 768
 769
 770
 771
 772
 773
 774
 775
 776
 777
 778
 779
 780
 781
 782
 783
 784
 785
 786
 787
 788
 789
 790
 791
 792
 793
 794
 795
 796
 797
 798
 799
 800
 801
 802
 803
 804
 805
 806
 807
 808
 809
 810
 811
 812
 813
 814
 815
 816
 817
 818
 819
 820
 821
 822
 823
 824
 825
 826
 827
 828
 829
 830
 831
 832
 833
 834
 835
 836
 837
 838
 839
 840
 841
 842
 843
 844
 845
 846
 847
 848
 849
 850
 851
 852
 853
 854
 855
 856
 857
 858
 859
 860
 861
 862
 863
 864
 865
 866
 867
 868
 869
 870
 871
 872
 873
 874
 875
 876
 877
 878
 879
 880
 881
 882
 883
 884
 885
 886
 887
 888
 889
 890
 891
 892
 893
 894
 895
 896
 897
 898
 899
 900
 901
 902
 903
 904
 905
 906
 907
 908
 909
 910
 911
 912
 913
 914
 915
 916
 917
 918
 919
 920
 921
 922
 923
 924
 925
 926
 927
 928
 929
 930
 931
 932
 933
 934
 935
 936
 937
 938
 939
 940
 941
 942
 943
 944
 945
 946
 947
 948
 949
 950
 951
 952
 953
 954
 955
 956
 957
 958
 959
 960
 961
 962
 963
 964
 965
 966
 967
 968
 969
 970
 971
 972
 973
 974
 975
 976
 977
 978
 979
 980
 981
 982
 983
 984
 985
 986
 987
 988
 989
 990
 991
 992
 993
 994
 995
 996
 997
 998
 999
1000
1001
1002
1003
1004
1005
1006
1007
1008
1009
1010
1011
1012
1013
1014
1015
1016
1017
1018
1019
1020
1021
1022
1023
1024
1025
1026
1027
1028
1029
1030
1031
1032
1033
1034
1035
1036
1037
1038
1039
1040
1041
1042
1043
1044
1045
1046
1047
1048
1049
1050
1051
1052
1053
1054
1055
1056
1057
1058
1059
1060
1061
1062
1063
1064
1065
1066
1067
1068
1069
1070
1071
1072
1073
1074
1075
1076
1077
1078
1079
1080
1081
1082
1083
1084
1085
1086
1087
1088
1089
1090
1091
1092
1093
1094
1095
1096
1097
1098
1099
1100
1101
1102
1103
1104
1105
1106
1107
1108
1109
1110
1111
1112
1113
1114
1115
1116
1117
1118
1119
1120
1121
1122
1123
1124
1125
1126
1127
1128
1129
1130
1131
1132
1133
1134
1135
1136
1137
1138
1139
1140
1141
1142
1143
1144
1145
1146
1147
1148
1149
1150
1151
1152
1153
1154
1155
1156
1157
1158
1159
1160
1161
1162
1163
1164
1165
1166
1167
1168
1169
1170

//
// Created by LEI XU on 4/28/19.
//
//
// This loader is created by Robert Smith.
// https://github.com/Bly7/OBJ-Loader
// Use the MIT license.


#ifndef RASTERIZER_OBJ_LOADER_H
#define RASTERIZER_OBJ_LOADER_H

#pragma once


#include <iostream>
#include <vector>
#include <string>
#include <fstream>
#include <math.h>

// Print progress to console while loading (large models)
#define OBJL_CONSOLE_OUTPUT

// Namespace: OBJL
//
// Description: The namespace that holds eveyrthing that
//	is needed and used for the OBJ Model Loader
namespace objl
{
    // Structure: Vector2
    //
    // Description: A 2D Vector that Holds Positional Data
    struct Vector2
    {
        // Default Constructor
        Vector2()
        {
            X = 0.0f;
            Y = 0.0f;
        }
        // Variable Set Constructor
        Vector2(float X_, float Y_)
        {
            X = X_;
            Y = Y_;
        }
        // Bool Equals Operator Overload
        bool operator==(const Vector2& other) const
        {
            return (this->X == other.X && this->Y == other.Y);
        }
        // Bool Not Equals Operator Overload
        bool operator!=(const Vector2& other) const
        {
            return !(this->X == other.X && this->Y == other.Y);
        }
        // Addition Operator Overload
        Vector2 operator+(const Vector2& right) const
        {
            return Vector2(this->X + right.X, this->Y + right.Y);
        }
        // Subtraction Operator Overload
        Vector2 operator-(const Vector2& right) const
        {
            return Vector2(this->X - right.X, this->Y - right.Y);
        }
        // Float Multiplication Operator Overload
        Vector2 operator*(const float& other) const
        {
            return Vector2(this->X *other, this->Y * other);
        }

        // Positional Variables
        float X;
        float Y;
    };

    // Structure: Vector3
    //
    // Description: A 3D Vector that Holds Positional Data
    struct Vector3
    {
        // Default Constructor
        Vector3()
        {
            X = 0.0f;
            Y = 0.0f;
            Z = 0.0f;
        }
        // Variable Set Constructor
        Vector3(float X_, float Y_, float Z_)
        {
            X = X_;
            Y = Y_;
            Z = Z_;
        }
        // Bool Equals Operator Overload
        bool operator==(const Vector3& other) const
        {
            return (this->X == other.X && this->Y == other.Y && this->Z == other.Z);
        }
        // Bool Not Equals Operator Overload
        bool operator!=(const Vector3& other) const
        {
            return !(this->X == other.X && this->Y == other.Y && this->Z == other.Z);
        }
        // Addition Operator Overload
        Vector3 operator+(const Vector3& right) const
        {
            return Vector3(this->X + right.X, this->Y + right.Y, this->Z + right.Z);
        }
        // Subtraction Operator Overload
        Vector3 operator-(const Vector3& right) const
        {
            return Vector3(this->X - right.X, this->Y - right.Y, this->Z - right.Z);
        }
        // Float Multiplication Operator Overload
        Vector3 operator*(const float& other) const
        {
            return Vector3(this->X * other, this->Y * other, this->Z * other);
        }
        // Float Division Operator Overload
        Vector3 operator/(const float& other) const
        {
            return Vector3(this->X / other, this->Y / other, this->Z / other);
        }

        // Positional Variables
        float X;
        float Y;
        float Z;
    };

    // Structure: Vertex
    //
    // Description: Model Vertex object that holds
    //	a Position, Normal, and Texture Coordinate
    struct Vertex
    {
        // Position Vector
        Vector3 Position;

        // Normal Vector
        Vector3 Normal;

        // Texture Coordinate Vector
        Vector2 TextureCoordinate;
    };

    struct Material
    {
        Material()
        {
            name;
            Ns = 0.0f;
            Ni = 0.0f;
            d = 0.0f;
            illum = 0;
        }

        // Material Name
        std::string name;
        // Ambient Color
        Vector3 Ka;
        // Diffuse Color
        Vector3 Kd;
        // Specular Color
        Vector3 Ks;
        // Specular Exponent
        float Ns;
        // Optical Density
        float Ni;
        // Dissolve
        float d;
        // Illumination
        int illum;
        // Ambient Texture Map
        std::string map_Ka;
        // Diffuse Texture Map
        std::string map_Kd;
        // Specular Texture Map
        std::string map_Ks;
        // Specular Hightlight Map
        std::string map_Ns;
        // Alpha Texture Map
        std::string map_d;
        // Bump Map
        std::string map_bump;
    };

    // Structure: Mesh
    //
    // Description: A Simple Mesh Object that holds
    //	a name, a vertex list, and an index list
    struct Mesh
    {
        // Default Constructor
        Mesh()
        {

        }
        // Variable Set Constructor
        Mesh(std::vector<Vertex>& _Vertices, std::vector<unsigned int>& _Indices)
        {
            Vertices = _Vertices;
            Indices = _Indices;
        }
        // Mesh Name
        std::string MeshName;
        // Vertex List
        std::vector<Vertex> Vertices;
        // Index List
        std::vector<unsigned int> Indices;

        // Material
        Material MeshMaterial;
    };

    // Namespace: Math
    //
    // Description: The namespace that holds all of the math
    //	functions need for OBJL
    namespace math
    {
        // Vector3 Cross Product
        Vector3 CrossV3(const Vector3 a, const Vector3 b)
        {
            return Vector3(a.Y * b.Z - a.Z * b.Y,
                           a.Z * b.X - a.X * b.Z,
                           a.X * b.Y - a.Y * b.X);
        }

        // Vector3 Magnitude Calculation
        float MagnitudeV3(const Vector3 in)
        {
            return (sqrtf(powf(in.X, 2) + powf(in.Y, 2) + powf(in.Z, 2)));
        }

        // Vector3 DotProduct
        float DotV3(const Vector3 a, const Vector3 b)
        {
            return (a.X * b.X) + (a.Y * b.Y) + (a.Z * b.Z);
        }

        // Angle between 2 Vector3 Objects
        float AngleBetweenV3(const Vector3 a, const Vector3 b)
        {
            float angle = DotV3(a, b);
            angle /= (MagnitudeV3(a) * MagnitudeV3(b));
            return angle = acosf(angle);
        }

        // Projection Calculation of a onto b
        Vector3 ProjV3(const Vector3 a, const Vector3 b)
        {
            Vector3 bn = b / MagnitudeV3(b);
            return bn * DotV3(a, bn);
        }
    }

    // Namespace: Algorithm
    //
    // Description: The namespace that holds all of the
    // Algorithms needed for OBJL
    namespace algorithm
    {
        // Vector3 Multiplication Opertor Overload
        Vector3 operator*(const float& left, const Vector3& right)
        {
            return Vector3(right.X * left, right.Y * left, right.Z * left);
        }

        // A test to see if P1 is on the same side as P2 of a line segment ab
        bool SameSide(Vector3 p1, Vector3 p2, Vector3 a, Vector3 b)
        {
            Vector3 cp1 = math::CrossV3(b - a, p1 - a);
            Vector3 cp2 = math::CrossV3(b - a, p2 - a);

            if (math::DotV3(cp1, cp2) >= 0)
                return true;
            else
                return false;
        }

        // Generate a cross produect normal for a triangle
        Vector3 GenTriNormal(Vector3 t1, Vector3 t2, Vector3 t3)
        {
            Vector3 u = t2 - t1;
            Vector3 v = t3 - t1;

            Vector3 normal = math::CrossV3(u,v);

            return normal;
        }

        // Check to see if a Vector3 Point is within a 3 Vector3 Triangle
        bool inTriangle(Vector3 point, Vector3 tri1, Vector3 tri2, Vector3 tri3)
        {
            // Test to see if it is within an infinite prism that the triangle outlines.
            bool within_tri_prisim = SameSide(point, tri1, tri2, tri3) && SameSide(point, tri2, tri1, tri3)
                                     && SameSide(point, tri3, tri1, tri2);

            // If it isn't it will never be on the triangle
            if (!within_tri_prisim)
                return false;

            // Calulate Triangle's Normal
            Vector3 n = GenTriNormal(tri1, tri2, tri3);

            // Project the point onto this normal
            Vector3 proj = math::ProjV3(point, n);

            // If the distance from the triangle to the point is 0
            //	it lies on the triangle
            if (math::MagnitudeV3(proj) == 0)
                return true;
            else
                return false;
        }

        // Split a String into a string array at a given token
        inline void split(const std::string &in,
                          std::vector<std::string> &out,
                          std::string token)
        {
            out.clear();

            std::string temp;

            for (int i = 0; i < int(in.size()); i++)
            {
                std::string test = in.substr(i, token.size());

                if (test == token)
                {
                    if (!temp.empty())
                    {
                        out.push_back(temp);
                        temp.clear();
                        i += (int)token.size() - 1;
                    }
                    else
                    {
                        out.push_back("");
                    }
                }
                else if (i + token.size() >= in.size())
                {
                    temp += in.substr(i, token.size());
                    out.push_back(temp);
                    break;
                }
                else
                {
                    temp += in[i];
                }
            }
        }

        // Get tail of string after first token and possibly following spaces
        inline std::string tail(const std::string &in)
        {
            size_t token_start = in.find_first_not_of(" \t");
            size_t space_start = in.find_first_of(" \t", token_start);
            size_t tail_start = in.find_first_not_of(" \t", space_start);
            size_t tail_end = in.find_last_not_of(" \t");
            if (tail_start != std::string::npos && tail_end != std::string::npos)
            {
                return in.substr(tail_start, tail_end - tail_start + 1);
            }
            else if (tail_start != std::string::npos)
            {
                return in.substr(tail_start);
            }
            return "";
        }

        // Get first token of string
        inline std::string firstToken(const std::string &in)
        {
            if (!in.empty())
            {
                size_t token_start = in.find_first_not_of(" \t");
                size_t token_end = in.find_first_of(" \t", token_start);
                if (token_start != std::string::npos && token_end != std::string::npos)
                {
                    return in.substr(token_start, token_end - token_start);
                }
                else if (token_start != std::string::npos)
                {
                    return in.substr(token_start);
                }
            }
            return "";
        }

        // Get element at given index position
        template <class T>
        inline const T & getElement(const std::vector<T> &elements, std::string &index)
        {
            int idx = std::stoi(index);
            if (idx < 0)
                idx = int(elements.size()) + idx;
            else
                idx--;
            return elements[idx];
        }
    }

    // Class: Loader
    //
    // Description: The OBJ Model Loader
    class Loader
    {
    public:
        // Default Constructor
        Loader()
        {

        }
        ~Loader()
        {
            LoadedMeshes.clear();
        }

        // Load a file into the loader
        //
        // If file is loaded return true
        //
        // If the file is unable to be found
        // or unable to be loaded return false
        bool LoadFile(std::string Path)
        {
            // If the file is not an .obj file return false
            if (Path.substr(Path.size() - 4, 4) != ".obj")
                return false;


            std::ifstream file(Path);

            if (!file.is_open())
                return false;

            LoadedMeshes.clear();
            LoadedVertices.clear();
            LoadedIndices.clear();

            std::vector<Vector3> Positions;
            std::vector<Vector2> TCoords;
            std::vector<Vector3> Normals;

            std::vector<Vertex> Vertices;
            std::vector<unsigned int> Indices;

            std::vector<std::string> MeshMatNames;

            bool listening = false;
            std::string meshname;

            Mesh tempMesh;

#ifdef OBJL_CONSOLE_OUTPUT
            const unsigned int outputEveryNth = 1000;
            unsigned int outputIndicator = outputEveryNth;
#endif

            std::string curline;
            while (std::getline(file, curline))
            {
#ifdef OBJL_CONSOLE_OUTPUT
                if ((outputIndicator = ((outputIndicator + 1) % outputEveryNth)) == 1)
                {
                    if (!meshname.empty())
                    {
                        std::cout
                                << "\r- " << meshname
                                << "\t| vertices > " << Positions.size()
                                << "\t| texcoords > " << TCoords.size()
                                << "\t| normals > " << Normals.size()
                                << "\t| triangles > " << (Vertices.size() / 3)
                                << (!MeshMatNames.empty() ? "\t| material: " + MeshMatNames.back() : "");
                    }
                }
#endif

                // Generate a Mesh Object or Prepare for an object to be created
                if (algorithm::firstToken(curline) == "o" || algorithm::firstToken(curline) == "g" || curline[0] == 'g')
                {
                    if (!listening)
                    {
                        listening = true;

                        if (algorithm::firstToken(curline) == "o" || algorithm::firstToken(curline) == "g")
                        {
                            meshname = algorithm::tail(curline);
                        }
                        else
                        {
                            meshname = "unnamed";
                        }
                    }
                    else
                    {
                        // Generate the mesh to put into the array

                        if (!Indices.empty() && !Vertices.empty())
                        {
                            // Create Mesh
                            tempMesh = Mesh(Vertices, Indices);
                            tempMesh.MeshName = meshname;

                            // Insert Mesh
                            LoadedMeshes.push_back(tempMesh);

                            // Cleanup
                            Vertices.clear();
                            Indices.clear();
                            meshname.clear();

                            meshname = algorithm::tail(curline);
                        }
                        else
                        {
                            if (algorithm::firstToken(curline) == "o" || algorithm::firstToken(curline) == "g")
                            {
                                meshname = algorithm::tail(curline);
                            }
                            else
                            {
                                meshname = "unnamed";
                            }
                        }
                    }
#ifdef OBJL_CONSOLE_OUTPUT
                    std::cout << std::endl;
                    outputIndicator = 0;
#endif
                }
                // Generate a Vertex Position
                if (algorithm::firstToken(curline) == "v")
                {
                    std::vector<std::string> spos;
                    Vector3 vpos;
                    algorithm::split(algorithm::tail(curline), spos, " ");

                    vpos.X = std::stof(spos[0]);
                    vpos.Y = std::stof(spos[1]);
                    vpos.Z = std::stof(spos[2]);

                    Positions.push_back(vpos);
                }
                // Generate a Vertex Texture Coordinate
                if (algorithm::firstToken(curline) == "vt")
                {
                    std::vector<std::string> stex;
                    Vector2 vtex;
                    algorithm::split(algorithm::tail(curline), stex, " ");

                    vtex.X = std::stof(stex[0]);
                    vtex.Y = std::stof(stex[1]);

                    TCoords.push_back(vtex);
                }
                // Generate a Vertex Normal;
                if (algorithm::firstToken(curline) == "vn")
                {
                    std::vector<std::string> snor;
                    Vector3 vnor;
                    algorithm::split(algorithm::tail(curline), snor, " ");

                    vnor.X = std::stof(snor[0]);
                    vnor.Y = std::stof(snor[1]);
                    vnor.Z = std::stof(snor[2]);

                    Normals.push_back(vnor);
                }
                // Generate a Face (vertices & indices)
                if (algorithm::firstToken(curline) == "f")
                {
                    // Generate the vertices
                    std::vector<Vertex> vVerts;
                    GenVerticesFromRawOBJ(vVerts, Positions, TCoords, Normals, curline);

                    // Add Vertices
                    for (int i = 0; i < int(vVerts.size()); i++)
                    {
                        Vertices.push_back(vVerts[i]);

                        LoadedVertices.push_back(vVerts[i]);
                    }

                    std::vector<unsigned int> iIndices;

                    VertexTriangluation(iIndices, vVerts);

                    // Add Indices
                    for (int i = 0; i < int(iIndices.size()); i++)
                    {
                        unsigned int indnum = (unsigned int)((Vertices.size()) - vVerts.size()) + iIndices[i];
                        Indices.push_back(indnum);

                        indnum = (unsigned int)((LoadedVertices.size()) - vVerts.size()) + iIndices[i];
                        LoadedIndices.push_back(indnum);

                    }
                }
                // Get Mesh Material Name
                if (algorithm::firstToken(curline) == "usemtl")
                {
                    MeshMatNames.push_back(algorithm::tail(curline));

                    // Create new Mesh, if Material changes within a group
                    if (!Indices.empty() && !Vertices.empty())
                    {
                        // Create Mesh
                        tempMesh = Mesh(Vertices, Indices);
                        tempMesh.MeshName = meshname;
                        int i = 2;
                        while(1) {
                            tempMesh.MeshName = meshname + "_" + std::to_string(i);

                            for (auto &m : LoadedMeshes)
                                if (m.MeshName == tempMesh.MeshName)
                                    continue;
                            break;
                        }

                        // Insert Mesh
                        LoadedMeshes.push_back(tempMesh);

                        // Cleanup
                        Vertices.clear();
                        Indices.clear();
                    }

#ifdef OBJL_CONSOLE_OUTPUT
                    outputIndicator = 0;
#endif
                }
                // Load Materials
                if (algorithm::firstToken(curline) == "mtllib")
                {
                    // Generate LoadedMaterial

                    // Generate a path to the material file
                    std::vector<std::string> temp;
                    algorithm::split(Path, temp, "/");

                    std::string pathtomat = "";

                    if (temp.size() != 1)
                    {
                        for (int i = 0; i < temp.size() - 1; i++)
                        {
                            pathtomat += temp[i] + "/";
                        }
                    }


                    pathtomat += algorithm::tail(curline);

#ifdef OBJL_CONSOLE_OUTPUT
                    std::cout << std::endl << "- find materials in: " << pathtomat << std::endl;
#endif

                    // Load Materials
                    LoadMaterials(pathtomat);
                }
            }

#ifdef OBJL_CONSOLE_OUTPUT
            std::cout << std::endl;
#endif

            // Deal with last mesh

            if (!Indices.empty() && !Vertices.empty())
            {
                // Create Mesh
                tempMesh = Mesh(Vertices, Indices);
                tempMesh.MeshName = meshname;

                // Insert Mesh
                LoadedMeshes.push_back(tempMesh);
            }

            file.close();

            // Set Materials for each Mesh
            for (int i = 0; i < MeshMatNames.size(); i++)
            {
                std::string matname = MeshMatNames[i];

                // Find corresponding material name in loaded materials
                // when found copy material variables into mesh material
                for (int j = 0; j < LoadedMaterials.size(); j++)
                {
                    if (LoadedMaterials[j].name == matname)
                    {
                        LoadedMeshes[i].MeshMaterial = LoadedMaterials[j];
                        break;
                    }
                }
            }

            if (LoadedMeshes.empty() && LoadedVertices.empty() && LoadedIndices.empty())
            {
                return false;
            }
            else
            {
                return true;
            }
        }

        // Loaded Mesh Objects
        std::vector<Mesh> LoadedMeshes;
        // Loaded Vertex Objects
        std::vector<Vertex> LoadedVertices;
        // Loaded Index Positions
        std::vector<unsigned int> LoadedIndices;
        // Loaded Material Objects
        std::vector<Material> LoadedMaterials;

    private:
        // Generate vertices from a list of positions,
        //	tcoords, normals and a face line
        void GenVerticesFromRawOBJ(std::vector<Vertex>& oVerts,
                                   const std::vector<Vector3>& iPositions,
                                   const std::vector<Vector2>& iTCoords,
                                   const std::vector<Vector3>& iNormals,
                                   std::string icurline)
        {
            std::vector<std::string> sface, svert;
            Vertex vVert;
            algorithm::split(algorithm::tail(icurline), sface, " ");

            bool noNormal = false;

            // For every given vertex do this
            for (int i = 0; i < int(sface.size()); i++)
            {
                // See What type the vertex is.
                int vtype;

                algorithm::split(sface[i], svert, "/");

                // Check for just position - v1
                if (svert.size() == 1)
                {
                    // Only position
                    vtype = 1;
                }

                // Check for position & texture - v1/vt1
                if (svert.size() == 2)
                {
                    // Position & Texture
                    vtype = 2;
                }

                // Check for Position, Texture and Normal - v1/vt1/vn1
                // or if Position and Normal - v1//vn1
                if (svert.size() == 3)
                {
                    if (svert[1] != "")
                    {
                        // Position, Texture, and Normal
                        vtype = 4;
                    }
                    else
                    {
                        // Position & Normal
                        vtype = 3;
                    }
                }

                // Calculate and store the vertex
                switch (vtype)
                {
                    case 1: // P
                    {
                        vVert.Position = algorithm::getElement(iPositions, svert[0]);
                        vVert.TextureCoordinate = Vector2(0, 0);
                        noNormal = true;
                        oVerts.push_back(vVert);
                        break;
                    }
                    case 2: // P/T
                    {
                        vVert.Position = algorithm::getElement(iPositions, svert[0]);
                        vVert.TextureCoordinate = algorithm::getElement(iTCoords, svert[1]);
                        noNormal = true;
                        oVerts.push_back(vVert);
                        break;
                    }
                    case 3: // P//N
                    {
                        vVert.Position = algorithm::getElement(iPositions, svert[0]);
                        vVert.TextureCoordinate = Vector2(0, 0);
                        vVert.Normal = algorithm::getElement(iNormals, svert[2]);
                        oVerts.push_back(vVert);
                        break;
                    }
                    case 4: // P/T/N
                    {
                        vVert.Position = algorithm::getElement(iPositions, svert[0]);
                        vVert.TextureCoordinate = algorithm::getElement(iTCoords, svert[1]);
                        vVert.Normal = algorithm::getElement(iNormals, svert[2]);
                        oVerts.push_back(vVert);
                        break;
                    }
                    default:
                    {
                        break;
                    }
                }
            }

            // take care of missing normals
            // these may not be truly acurate but it is the
            // best they get for not compiling a mesh with normals
            if (noNormal)
            {
                Vector3 A = oVerts[0].Position - oVerts[1].Position;
                Vector3 B = oVerts[2].Position - oVerts[1].Position;

                Vector3 normal = math::CrossV3(A, B);

                for (int i = 0; i < int(oVerts.size()); i++)
                {
                    oVerts[i].Normal = normal;
                }
            }
        }

        // Triangulate a list of vertices into a face by printing
        //	inducies corresponding with triangles within it
        void VertexTriangluation(std::vector<unsigned int>& oIndices,
                                 const std::vector<Vertex>& iVerts)
        {
            // If there are 2 or less verts,
            // no triangle can be created,
            // so exit
            if (iVerts.size() < 3)
            {
                return;
            }
            // If it is a triangle no need to calculate it
            if (iVerts.size() == 3)
            {
                oIndices.push_back(0);
                oIndices.push_back(1);
                oIndices.push_back(2);
                return;
            }

            // Create a list of vertices
            std::vector<Vertex> tVerts = iVerts;

            while (true)
            {
                // For every vertex
                for (int i = 0; i < int(tVerts.size()); i++)
                {
                    // pPrev = the previous vertex in the list
                    Vertex pPrev;
                    if (i == 0)
                    {
                        pPrev = tVerts[tVerts.size() - 1];
                    }
                    else
                    {
                        pPrev = tVerts[i - 1];
                    }

                    // pCur = the current vertex;
                    Vertex pCur = tVerts[i];

                    // pNext = the next vertex in the list
                    Vertex pNext;
                    if (i == tVerts.size() - 1)
                    {
                        pNext = tVerts[0];
                    }
                    else
                    {
                        pNext = tVerts[i + 1];
                    }

                    // Check to see if there are only 3 verts left
                    // if so this is the last triangle
                    if (tVerts.size() == 3)
                    {
                        // Create a triangle from pCur, pPrev, pNext
                        for (int j = 0; j < int(tVerts.size()); j++)
                        {
                            if (iVerts[j].Position == pCur.Position)
                                oIndices.push_back(j);
                            if (iVerts[j].Position == pPrev.Position)
                                oIndices.push_back(j);
                            if (iVerts[j].Position == pNext.Position)
                                oIndices.push_back(j);
                        }

                        tVerts.clear();
                        break;
                    }
                    if (tVerts.size() == 4)
                    {
                        // Create a triangle from pCur, pPrev, pNext
                        for (int j = 0; j < int(iVerts.size()); j++)
                        {
                            if (iVerts[j].Position == pCur.Position)
                                oIndices.push_back(j);
                            if (iVerts[j].Position == pPrev.Position)
                                oIndices.push_back(j);
                            if (iVerts[j].Position == pNext.Position)
                                oIndices.push_back(j);
                        }

                        Vector3 tempVec;
                        for (int j = 0; j < int(tVerts.size()); j++)
                        {
                            if (tVerts[j].Position != pCur.Position
                                && tVerts[j].Position != pPrev.Position
                                && tVerts[j].Position != pNext.Position)
                            {
                                tempVec = tVerts[j].Position;
                                break;
                            }
                        }

                        // Create a triangle from pCur, pPrev, pNext
                        for (int j = 0; j < int(iVerts.size()); j++)
                        {
                            if (iVerts[j].Position == pPrev.Position)
                                oIndices.push_back(j);
                            if (iVerts[j].Position == pNext.Position)
                                oIndices.push_back(j);
                            if (iVerts[j].Position == tempVec)
                                oIndices.push_back(j);
                        }

                        tVerts.clear();
                        break;
                    }

                    // If Vertex is not an interior vertex
                    float angle = math::AngleBetweenV3(pPrev.Position - pCur.Position, pNext.Position - pCur.Position) * (180 / 3.14159265359);
                    if (angle <= 0 && angle >= 180)
                        continue;

                    // If any vertices are within this triangle
                    bool inTri = false;
                    for (int j = 0; j < int(iVerts.size()); j++)
                    {
                        if (algorithm::inTriangle(iVerts[j].Position, pPrev.Position, pCur.Position, pNext.Position)
                            && iVerts[j].Position != pPrev.Position
                            && iVerts[j].Position != pCur.Position
                            && iVerts[j].Position != pNext.Position)
                        {
                            inTri = true;
                            break;
                        }
                    }
                    if (inTri)
                        continue;

                    // Create a triangle from pCur, pPrev, pNext
                    for (int j = 0; j < int(iVerts.size()); j++)
                    {
                        if (iVerts[j].Position == pCur.Position)
                            oIndices.push_back(j);
                        if (iVerts[j].Position == pPrev.Position)
                            oIndices.push_back(j);
                        if (iVerts[j].Position == pNext.Position)
                            oIndices.push_back(j);
                    }

                    // Delete pCur from the list
                    for (int j = 0; j < int(tVerts.size()); j++)
                    {
                        if (tVerts[j].Position == pCur.Position)
                        {
                            tVerts.erase(tVerts.begin() + j);
                            break;
                        }
                    }

                    // reset i to the start
                    // -1 since loop will add 1 to it
                    i = -1;
                }

                // if no triangles were created
                if (oIndices.size() == 0)
                    break;

                // if no more vertices
                if (tVerts.size() == 0)
                    break;
            }
        }

        // Load Materials from .mtl file
        bool LoadMaterials(std::string path)
        {
            // If the file is not a material file return false
            if (path.substr(path.size() - 4, path.size()) != ".mtl")
                return false;

            std::ifstream file(path);

            // If the file is not found return false
            if (!file.is_open())
                return false;

            Material tempMaterial;

            bool listening = false;

            // Go through each line looking for material variables
            std::string curline;
            while (std::getline(file, curline))
            {
                // new material and material name
                if (algorithm::firstToken(curline) == "newmtl")
                {
                    if (!listening)
                    {
                        listening = true;

                        if (curline.size() > 7)
                        {
                            tempMaterial.name = algorithm::tail(curline);
                        }
                        else
                        {
                            tempMaterial.name = "none";
                        }
                    }
                    else
                    {
                        // Generate the material

                        // Push Back loaded Material
                        LoadedMaterials.push_back(tempMaterial);

                        // Clear Loaded Material
                        tempMaterial = Material();

                        if (curline.size() > 7)
                        {
                            tempMaterial.name = algorithm::tail(curline);
                        }
                        else
                        {
                            tempMaterial.name = "none";
                        }
                    }
                }
                // Ambient Color
                if (algorithm::firstToken(curline) == "Ka")
                {
                    std::vector<std::string> temp;
                    algorithm::split(algorithm::tail(curline), temp, " ");

                    if (temp.size() != 3)
                        continue;

                    tempMaterial.Ka.X = std::stof(temp[0]);
                    tempMaterial.Ka.Y = std::stof(temp[1]);
                    tempMaterial.Ka.Z = std::stof(temp[2]);
                }
                // Diffuse Color
                if (algorithm::firstToken(curline) == "Kd")
                {
                    std::vector<std::string> temp;
                    algorithm::split(algorithm::tail(curline), temp, " ");

                    if (temp.size() != 3)
                        continue;

                    tempMaterial.Kd.X = std::stof(temp[0]);
                    tempMaterial.Kd.Y = std::stof(temp[1]);
                    tempMaterial.Kd.Z = std::stof(temp[2]);
                }
                // Specular Color
                if (algorithm::firstToken(curline) == "Ks")
                {
                    std::vector<std::string> temp;
                    algorithm::split(algorithm::tail(curline), temp, " ");

                    if (temp.size() != 3)
                        continue;

                    tempMaterial.Ks.X = std::stof(temp[0]);
                    tempMaterial.Ks.Y = std::stof(temp[1]);
                    tempMaterial.Ks.Z = std::stof(temp[2]);
                }
                // Specular Exponent
                if (algorithm::firstToken(curline) == "Ns")
                {
                    tempMaterial.Ns = std::stof(algorithm::tail(curline));
                }
                // Optical Density
                if (algorithm::firstToken(curline) == "Ni")
                {
                    tempMaterial.Ni = std::stof(algorithm::tail(curline));
                }
                // Dissolve
                if (algorithm::firstToken(curline) == "d")
                {
                    tempMaterial.d = std::stof(algorithm::tail(curline));
                }
                // Illumination
                if (algorithm::firstToken(curline) == "illum")
                {
                    tempMaterial.illum = std::stoi(algorithm::tail(curline));
                }
                // Ambient Texture Map
                if (algorithm::firstToken(curline) == "map_Ka")
                {
                    tempMaterial.map_Ka = algorithm::tail(curline);
                }
                // Diffuse Texture Map
                if (algorithm::firstToken(curline) == "map_Kd")
                {
                    tempMaterial.map_Kd = algorithm::tail(curline);
                }
                // Specular Texture Map
                if (algorithm::firstToken(curline) == "map_Ks")
                {
                    tempMaterial.map_Ks = algorithm::tail(curline);
                }
                // Specular Hightlight Map
                if (algorithm::firstToken(curline) == "map_Ns")
                {
                    tempMaterial.map_Ns = algorithm::tail(curline);
                }
                // Alpha Texture Map
                if (algorithm::firstToken(curline) == "map_d")
                {
                    tempMaterial.map_d = algorithm::tail(curline);
                }
                // Bump Map
                if (algorithm::firstToken(curline) == "map_Bump" || algorithm::firstToken(curline) == "map_bump" || algorithm::firstToken(curline) == "bump")
                {
                    tempMaterial.map_bump = algorithm::tail(curline);
                }
            }

            // Deal with last material

            // Push Back loaded Material
            LoadedMaterials.push_back(tempMaterial);

            // Test to see if anything was loaded
            // If not return false
            if (LoadedMaterials.empty())
                return false;
                // If so return true
            else
                return true;
        }
    };
}
#endif //RASTERIZER_OBJ_LOADER_H

线性代数使用Eigen库

三角形类

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

#ifndef TINYRENDERER_TRIANGLE_H
#define TINYRENDERER_TRIANGLE_H
#include <Eigen/Eigen>
using namespace Eigen;
class Triangle{
public:
    Eigen::Vector4f globalCoords[3];
    Eigen::Vector3f color[3];
    Eigen::Vector2f texCoords[3];
    Eigen::Vector3f normal[3];
    Eigen::Vector3f screenCoords[3];
    Triangle();

    void setGlobalCoords(int ind, Eigen::Vector4f ver);
    void setNormal(int ind, Eigen::Vector3f n);
    void setTexCoord(int ind,Eigen::Vector2f uv);
    void setScreenCoord(int ind,int width,int height);
};

#endif //TINYRENDERER_TRIANGLE_H

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

#include "Triangle.h"

Triangle::Triangle() {
    globalCoords[0] << 0,0,0,1;
    globalCoords[1] << 0,0,0,1;
    globalCoords[2] << 0,0,0,1;

    color[0] << 0.0, 0.0, 0.0;
    color[1] << 0.0, 0.0, 0.0;
    color[2] << 0.0, 0.0, 0.0;

    texCoords[0] << 0.0, 0.0;
    texCoords[1] << 0.0, 0.0;
    texCoords[2] << 0.0, 0.0;
}

void Triangle::setGlobalCoords(int ind, Vector4f ver){
    globalCoords[ind] = ver;
}
void Triangle::setNormal(int ind, Vector3f n){
    normal[ind] = n;
}
void Triangle::setTexCoord(int ind, Vector2f uv) {
    texCoords[ind] = uv;
}
// 简单实现正交投影
Vector3f world2screen(Vector4f globalCoord,int width,int height) {
    return Vector3f(int((globalCoord.x()+1.)*width/2.+.5), int((globalCoord.y()+1.)*height/2.+.5), globalCoord.z());
}
void Triangle::setScreenCoord(int ind,int width,int height) {
    screenCoords[ind] = world2screen(this->globalCoords[ind],width,height);
}

模型类

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

#ifndef __MODEL_H__
#define __MODEL_H__

#include <vector>
#include <Eigen/Eigen>
#include "Triangle.h"

class Model {
private:
public:
    explicit Model(const char *filename);
    ~Model();
    std::vector<Triangle> triangleList;

};

#endif //__MODEL_H__

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

#include "model.h"
#include "thirdParty/OBJ_Loader.h"
// 加载模型就直接用教程的代码了！
Model::Model(const char *filename) {
    objl::Loader Loader;
    Loader.LoadFile(filename);
    std::cout << "?";

    for (const auto &mesh: Loader.LoadedMeshes){
        for(int i=0;i<mesh.Vertices.size();i+=3)
        {

            Triangle * t = new Triangle;
            for(int j=0;j<3;j++)
            {
                t->setGlobalCoords(j, Vector4f(mesh.Vertices[i + j].Position.X, mesh.Vertices[i + j].Position.Y,mesh.Vertices[i + j].Position.Z, 1.0));
                t->setNormal(j,Vector3f(mesh.Vertices[i+j].Normal.X,mesh.Vertices[i+j].Normal.Y,mesh.Vertices[i+j].Normal.Z));
                t->setTexCoord(j,Vector2f(mesh.Vertices[i+j].TextureCoordinate.X, mesh.Vertices[i+j].TextureCoordinate.Y));
            }
            this->triangleList.push_back(*t);
        }
    }
}

Model::~Model() {
}

已经告诉了使用zbuffer，其实就是把处于后边的物体就不需要渲染了，在背面剔除后，删掉了不需要处理的三角形，但是在像素层面，位于前面的颜色应该把后边的颜色挡住 首先来定义一个zbuffer，我没有使用教程中的一位数组表示，因为我不希望代码理解起来过于复杂

1
2
3

    // 定义一个zbuffer，并设置为无穷小
    std::unique_ptr<std::vector<std::vector<float>>> zBuffer = std::make_unique<std::vector<std::vector<float>>>(width, std::vector<float>(height));
    auto * zBuffer = new std::vector<std::vector<float>>(width, std::vector<float>(std::numeric_limits<float>::lowest()));

在这种情况下，绘制像素前要先判断当前想要绘制的颜色是否被挡住，至于是大于号还是小于号，看如何定义，当前模型是z越大离屏幕越近

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

	double alpha = signed_triangle_area(x, y, bx, by, cx, cy) / total_area;
	double beta  = signed_triangle_area(x, y, cx, cy, ax, ay) / total_area;
	double gamma = signed_triangle_area(x, y, ax, ay, bx, by) / total_area;
	if (alpha<0 || beta<0 || gamma<0) continue; // 说明当前像素不在三角形内部
	float barycentricZ = alpha*triangle.screenCoords[0].z() + beta*triangle.screenCoords[1].z() + gamma*triangle.screenCoords[2].z();
	// zbuffer中缓存的渲染物体距离小于当前渲染物体的距离时，才覆盖渲染
	if (x<width && y < height && zBuffer->at(x).at(y) < barycentricZ){
	    zBuffer->at(x).at(y) = barycentricZ;
	    framebuffer.set(x,y,color);
	}

当前的整体代码如下

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132

#include "thirdParty/tgaimage.h"
#include "model.h"
#include <vector>
#include <cmath>
#include <iostream>

constexpr TGAColor white   = {255, 255, 255, 255};
constexpr TGAColor green   = {  0, 255,   0, 255};
constexpr TGAColor red     = {  255,   0, 0, 255};
constexpr TGAColor blue    = {255, 128,  64, 255};
constexpr TGAColor yellow  = {  0, 200, 255, 255};
constexpr static int width  = 2560;
constexpr static int height = 1920;
// 画线尝试1
void drawLine_first(int ax, int ay, int bx, int by, TGAImage &img, TGAColor color){
    for(float t = 0;t<=1;t+=0.02){
        int x = std::round(ax + t * (bx - ax)); // round会进行四舍五入
        int y = std::round(ay + t * (by - ay));
        img.set(x,y,color);
    }
}
// 画线尝试2
void drawLine_second(int ax, int ay, int bx, int by, TGAImage &img, TGAColor color){
    if (ax>bx) { // make it left−to−right
        std::swap(ax, bx);
        std::swap(ay, by);
    }
    for (int x = ax ; x<= bx; x++) { // 不再以t控制，而是以x的进行进行控制，保证了水平方向上不会有空隙
        // 如果不加强制转换，当分子分母都是整数时，计算结果的小数部分会被截断
        float t = (x-ax)/static_cast<float>(bx-ax); // 变换了形式，表示出当x移动一格时，t是多少，
        int y = std::round( ay + (by-ay)*t );
        img.set(x, y, color);
    }
}
// 画线尝试3
void drawLine_third(int ax, int ay, int bx, int by, TGAImage &img, TGAColor color){
    bool steep = std::abs(ax-bx) < std::abs(ay-by);
    if (steep) { // if the drawLine is steep, we transpose the image
        std::swap(ax, ay);
        std::swap(bx, by);
    }
    if (ax>bx) { // make it left−to−right
        std::swap(ax, bx);
        std::swap(ay, by);
    }
    for (int x = ax ; x<= bx; x++) { // 不再以t控制，而是以x的进行进行控制，保证了水平方向上不会有空隙
        // 如果不加强制转换，当分子分母都是整数时，计算结果的小数部分会被截断
        float t = (x-ax)/static_cast<float>(bx-ax); // 变换了形式，表示出当x移动一格时，t是多少，
        int y = std::round( ay + (by-ay)*t );
        if (steep) // if transposed, de−transpose
            img.set(y, x, color);
        else
            img.set(x, y, color);
    }
}
// 最终版本 对计算进行了优化
void drawLine(int ax, int ay, int bx, int by, TGAImage &framebuffer, TGAColor color) {
    bool steep = std::abs(ax-bx) < std::abs(ay-by);
    if (steep) { // if the drawLine is steep, we transpose the image
        std::swap(ax, ay);
        std::swap(bx, by);
    }
    if (ax>bx) { // make it left−to−right
        std::swap(ax, bx);
        std::swap(ay, by);
    }
    int y = ay;
    int ierror = 0;
    for (int x=ax; x<=bx; x++) {
        if (steep) // if transposed, de−transpose
            framebuffer.set(y, x, color);
        else
            framebuffer.set(x, y, color);
        ierror += 2 * std::abs(by-ay);
        y += (by > ay ? 1 : -1) * (ierror > bx - ax);
        ierror -= 2 * (bx-ax)   * (ierror > bx - ax);
    }
}
// 三角形面积，可能返回负数，表示背对屏幕
double signed_triangle_area(int ax, int ay, int bx, int by, int cx, int cy) {
    return .5*((by-ay)*(bx+ax) + (cy-by)*(cx+bx) + (ay-cy)*(ax+cx));
}
// 绘制一个三角形
void drawTriangle(Triangle triangle, TGAImage &framebuffer, std::vector<std::vector<float>> * zBuffer,TGAColor color) {
    float ax = triangle.screenCoords[0].x();
    float ay = triangle.screenCoords[0].y();
    float bx = triangle.screenCoords[1].x();
    float by = triangle.screenCoords[1].y();
    float cx = triangle.screenCoords[2].x();
    float cy = triangle.screenCoords[2].y();
    float bbminx = std::min(std::min(ax, bx), cx);
    float bbminy = std::min(std::min(ay, by), cy);
    float bbmaxx = std::max(std::max(ax, bx), cx);
    float bbmaxy = std::max(std::max(ay, by), cy);

    // 如果面积为负数，背对屏幕，被裁剪
    double total_area = signed_triangle_area(ax, ay, bx, by, cx, cy);
    if (total_area<1) return;

#pragma omp parallel for
    for (int x=bbminx; x<=bbmaxx; x++) {
        for (int y=bbminy; y<=bbmaxy; y++) {
            double alpha = signed_triangle_area(x, y, bx, by, cx, cy) / total_area;
            double beta  = signed_triangle_area(x, y, cx, cy, ax, ay) / total_area;
            double gamma = signed_triangle_area(x, y, ax, ay, bx, by) / total_area;
            if (alpha<0 || beta<0 || gamma<0) continue; // 说明当前像素不在三角形内部
            float barycentricZ = alpha*triangle.screenCoords[0].z() + beta*triangle.screenCoords[1].z() + gamma*triangle.screenCoords[2].z();
            // zbuffer中缓存的渲染物体距离小于当前渲染物体的距离时，才覆盖渲染
            if (x<width && y < height && zBuffer->at(x).at(y) < barycentricZ){
                zBuffer->at(x).at(y) = barycentricZ;
                framebuffer.set(x,y,color);
            }
        }
    }
}

int main() {
    auto * model = new Model("./obj/african_head/african_head.obj");
    TGAImage framebuffer(width, height, TGAImage::RGB);
    // 定义一个zBuffer,并设置全部数据为最小负数
    auto * zBuffer = new std::vector<std::vector<float>>(width, std::vector<float>(height,std::numeric_limits<float>::lowest()));
    // 遍历obj文件中的每个三角形
    for (Triangle triangle : model->triangleList) {
        // 将当前三角形的三个顶点都投影到屏幕
        for (int i = 0; i < 3; ++i) triangle.setScreenCoord(i,width,height);
        // 绘制三角形
        drawTriangle(triangle, framebuffer, zBuffer, TGAColor(rand()%255, rand()%255, rand()%255, 255));
    }
//    framebuffer.flip_vertically();
    framebuffer.write_tga_file("framebuffer.tga");
    return 0;
}

下一步就是把材质贴上去，也就是设置颜色时不再使用随机颜色，而是根据三个顶点的纹理坐标进行插值，获得一个像素点的纹理坐标，从纹理图片对应位置获取颜色来设置 首先得有一个承载材质的类，我这里使用的是TGAImage来读取图片,并把材质类作为Model的成员

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

#ifndef TINYRENDERER_TEXTURE_H
#define TINYRENDERER_TEXTURE_H
#include <Eigen/Eigen>
#include "thirdParty/tgaimage.h"
class Texture{
private:
    TGAImage texture;

public:
    Texture(const std::string& name)
    {

        texture.read_tga_file("");
        width = texture.width();
        height = texture.height();
    }

    int width, height;

    TGAColor getColor(float u, float v)
    {
        auto u_img = u * width;
        auto v_img = (1 - v) * height;
        TGAColor color = texture.get(v_img, u_img);
        return color;
    }
};
#endif //TINYRENDERER_TEXTURE_H

在main中首先对uv坐标进行插值，之后在设置像素颜色时，通过插值的uv坐标，到uv图中找对应位置的颜色

1
2
3
4
5
6
7

            float texU = alpha*triangle.texCoords[0].x() + beta*triangle.texCoords[1].x() + gamma*triangle.texCoords[2].x();
            float texV = alpha*triangle.texCoords[0].y() + beta*triangle.texCoords[1].y() + gamma*triangle.texCoords[2].y();
            // zbuffer中缓存的渲染物体距离小于当前渲染物体的距离时，才覆盖渲染
            if (x<width && y < height && zBuffer->at(x).at(y) < barycentricZ){
                zBuffer->at(x).at(y) = barycentricZ;
                framebuffer.set(x,y,texture.getColor(texU,texV));
            }

生成效果如下图所示 请添加图片描述 到目前为止我自己的实现可以在github的分支结点中找到：https://github.com/sdpyy1/CppLearn/tree/56841b79fe7c74bce1d9210f1a42e2a3ca019768/tinyrenderer

Lesson 4: Perspective projection

这里我不希望只完成他课程的简单情况，我直接把MVP矩阵+视口变换全部封装了，详情可查看我的仓库，下边是主要代码

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146

#include "model.h"
#include "thirdParty/OBJ_Loader.h"
Model::Model(const char * objFileName,const char * texFileName) : texture(texFileName){
    objl::Loader Loader;
    Loader.LoadFile(objFileName);
    this->modelMatrix = Eigen::Matrix4f::Identity();
    this->viewMatrix = Eigen::Matrix4f::Identity();
    this->projectionMatrix = Eigen::Matrix4f::Identity();
    for (const auto &mesh: Loader.LoadedMeshes){
        for(int i=0;i<mesh.Vertices.size();i+=3)
        {
            Triangle t;
            for(int j=0;j<3;j++)
            {
                // 此处设置每个三角形的属性
                t.setGlobalCoord(j, Vector4f(mesh.Vertices[i + j].Position.X, mesh.Vertices[i + j].Position.Y,
                                              mesh.Vertices[i + j].Position.Z, 1.0));
                t.setNormal(j,Vector3f(mesh.Vertices[i+j].Normal.X,mesh.Vertices[i+j].Normal.Y,mesh.Vertices[i+j].Normal.Z));
                t.setTexCoord(j,Vector2f(mesh.Vertices[i+j].TextureCoordinate.X, mesh.Vertices[i+j].TextureCoordinate.Y));
                Matrix4f mvp = projectionMatrix * viewMatrix * modelMatrix;
            }
            this->triangleList.push_back(t);
        }
    }
}
// 将角度转换为弧度
constexpr float deg2rad(float degrees) {
    return degrees * M_PI / 180.0f;
}
// 生成绕 x, y, z 轴旋转的变换矩阵
Eigen::Matrix4f rotation(float angleX, float angleY, float angleZ) {
    // 分别计算绕 x, y, z 轴旋转的矩阵
    Eigen::Matrix4f rotationX = Eigen::Matrix4f::Identity();
    float radX = deg2rad(angleX);
    rotationX(1, 1) = std::cos(radX);
    rotationX(1, 2) = -std::sin(radX);
    rotationX(2, 1) = std::sin(radX);
    rotationX(2, 2) = std::cos(radX);

    Eigen::Matrix4f rotationY = Eigen::Matrix4f::Identity();
    float radY = deg2rad(angleY);
    rotationY(0, 0) = std::cos(radY);
    rotationY(0, 2) = std::sin(radY);
    rotationY(2, 0) = -std::sin(radY);
    rotationY(2, 2) = std::cos(radY);

    Eigen::Matrix4f rotationZ = Eigen::Matrix4f::Identity();
    float radZ = deg2rad(angleZ);
    rotationZ(0, 0) = std::cos(radZ);
    rotationZ(0, 1) = -std::sin(radZ);
    rotationZ(1, 0) = std::sin(radZ);
    rotationZ(1, 1) = std::cos(radZ);

    // 组合三个旋转矩阵，这里假设旋转顺序为 Z -> Y -> X
    Eigen::Matrix4f modelMatrix = rotationX * rotationY * rotationZ;
    return modelMatrix;
}
// 生成平移变换矩阵
Eigen::Matrix4f translation(float tx, float ty, float tz) {
    Eigen::Matrix4f translationMatrix = Eigen::Matrix4f::Identity();
    translationMatrix(0, 3) = tx;
    translationMatrix(1, 3) = ty;
    translationMatrix(2, 3) = tz;
    return translationMatrix;
}
// 生成缩放变换矩阵
Eigen::Matrix4f scaling(float sx, float sy, float sz) {
    Eigen::Matrix4f scalingMatrix = Eigen::Matrix4f::Identity();
    scalingMatrix(0, 0) = sx;
    scalingMatrix(1, 1) = sy;
    scalingMatrix(2, 2) = sz;
    return scalingMatrix;
}
// 视图变换矩阵
Eigen::Matrix4f get_view_matrix(Eigen::Vector3f eye_pos, Eigen::Vector3f target, Eigen::Vector3f up) {
    // TODO:还没理解怎么换的
    // 观察方向
    Vector3f z = (eye_pos - target).normalized();
    // 叉乘得右方向
    Vector3f r = z.cross(up).normalized();
    // 叉乘得上方向
    Vector3f u = z.cross(r).normalized();
    Eigen::Matrix4f translate;
    translate << r.x(),r.y(),r.z(),-r.dot(eye_pos),
                u.x(),u.y(),u.z(),-u.dot(eye_pos),
                -z.x(),-z.y(),-z.z(),z.dot(eye_pos),
                0,0,0,1;
    // 效果是将摄像机作为原点情况下各个点的坐标
    return translate;

}
Eigen::Matrix4f get_projection_matrix(float eye_fov, float aspect_ratio, float n, float f) {

    Eigen::Matrix4f projection = Eigen::Matrix4f::Identity();
    float t = -tan((eye_fov/360)*M_PI)*(abs(n)); //top
    float r = t/aspect_ratio;

    Eigen::Matrix4f Mp;//透视矩阵
    Mp <<
       n, 0, 0,   0,
            0, n, 0,   0,
            0, 0, n+f, -n*f,
            0, 0, 1,   0;
    Eigen::Matrix4f Mo_tran;//平移矩阵
    Mo_tran <<
            1, 0, 0, 0,
            0, 1, 0, 0,  //b=-t;
            0, 0, 1, -(n+f)/2 ,
            0, 0, 0, 1;
    Eigen::Matrix4f Mo_scale;//缩放矩阵
    Mo_scale <<
             1/r,     0,       0,       0,
            0,       1/t,     0,       0,
            0,       0,       2/(n-f), 0,
            0,       0,       0,       1;
    projection = (Mo_scale*Mo_tran)* Mp;//投影矩阵
    //这里一定要注意顺序，先透视再正交;正交里面先平移再缩放；否则做出来会是一条直线！
    return projection;
}
void Model::setModelTransformation(float angleX, float angleY, float angleZ, float tx, float ty, float tz, float sx, float sy, float sz){
    if (triangleList.empty()){
        std::cout << "模型未导入！"<<std::endl;
        return;
    }
    Eigen::Matrix4f rotationMatrix = rotation(angleX, angleY, angleZ);
    Eigen::Matrix4f translationMatrix = translation(tx, ty, tz);
    Eigen::Matrix4f scalingMatrix = scaling(sx, sy, sz);
    // 按缩放 -> 旋转 -> 平移的顺序组合变换矩阵
    modelMatrix = translationMatrix * rotationMatrix * scalingMatrix;
}
// 应用视图变换的函数
void Model::setViewTransformation(Eigen::Vector3f eye_pos, Eigen::Vector3f target, Eigen::Vector3f up) {
    viewMatrix = get_view_matrix(eye_pos,target,up);
}
// 应用透视变换的函数
void Model::setProjectionTransformation(float fovY, float aspectRatio, float near, float far) {
    projectionMatrix = get_projection_matrix(fovY, aspectRatio, near, far);
}

Matrix4f Model::getMVP(){
    return projectionMatrix * viewMatrix * modelMatrix;
}


Model::~Model() {
}
© 2020 - 2026 爱喝东方树叶
📚 文章数: 72 ✍️ 总字数: 245.55K
本站总访问量次 本站访客数人次
