#version 450 core
#include "../common/common.glsl"
#include "../common/TAA.glsl"
#include "../common/math.glsl"
#ifdef COMPUTE_SHADER
layout(set = 1,binding = 0,rgba32f) uniform image2D out_texture;
layout(set = 1,binding = 1) uniform texture2D velocityTexture;
layout(set = 1,binding = 2) uniform texture2D historyTexture;
layout(set = 1,binding = 3) uniform texture2D curTexture;
layout(set = 1,binding = 4) uniform texture2D depthTexture;
layout(local_size_x = 16, local_size_y = 16, local_size_z = 1) in;
void main()
{
ivec2 invocID = ivec2(gl_GlobalInvocationID.xy);
ivec2 imgSize = ivec2(imageSize(out_texture));
if (invocID.x >= imgSize.x || invocID.y >= imgSize.y)
return;
if(GetPostprocessSetting().TaaSetting.enable == 0){
vec2 texCoords = (vec2(invocID) + 0.5f) / vec2(imgSize);
vec3 curColor = texture(sampler2D(curTexture,SAMPLER[0]), texCoords).rgb;
imageStore(out_texture, invocID, vec4(curColor, 1.0));
return;
}
vec2 texelSize = 1.0 / vec2(imgSize);
vec2 baseTexCoords = (vec2(invocID) + 0.5f) / vec2(imgSize);
vec2 jitterUV = GetPostprocessSetting().TaaSetting.UVjetter * texelSize;
vec2 texCoordsWithJitter = baseTexCoords + jitterUV;
vec2 ClosestUv = GetClosestFragment(baseTexCoords, texelSize, depthTexture);
vec2 velocity = texture(sampler2D(velocityTexture,SAMPLER[0]), ClosestUv).rg;
vec2 historyTexCoords = baseTexCoords - velocity;
// 采样当前帧（带抖动）、历史帧（无抖动）颜色
vec3 historyColor = texture(sampler2D(historyTexture,SAMPLER[0]), historyTexCoords).rgb;
vec3 curColor = texture(sampler2D(curTexture,SAMPLER[0]), texCoordsWithJitter).rgb;

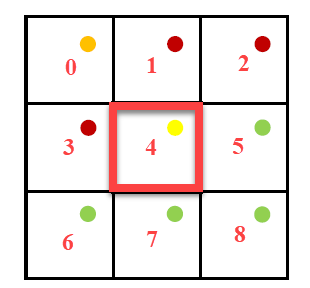

const vec2 kOffsets3x3[9] = {
vec2(-1.0, -1.0), vec2( 0.0, -1.0), vec2( 1.0, -1.0),
vec2(-1.0, 0.0), vec2( 0.0, 0.0), vec2( 1.0, 0.0),
vec2(-1.0, 1.0), vec2( 0.0, 1.0), vec2( 1.0, 1.0)
};

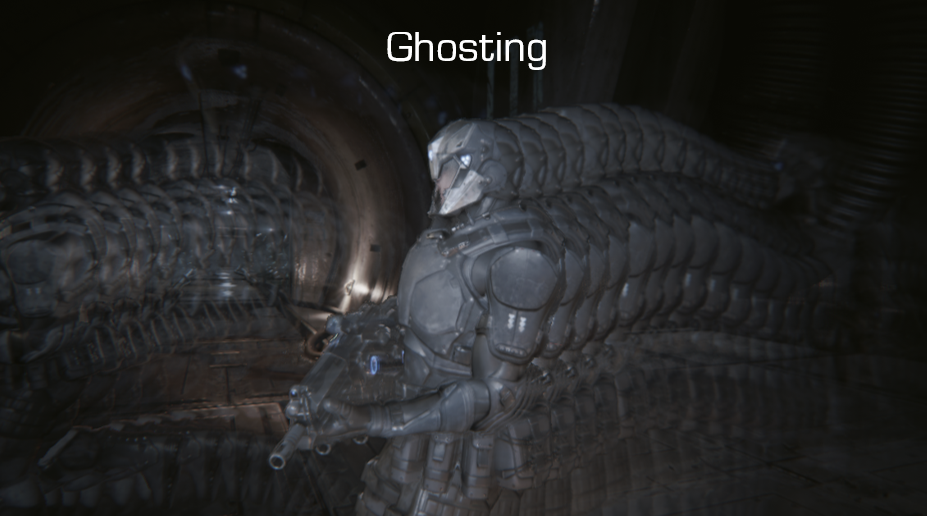

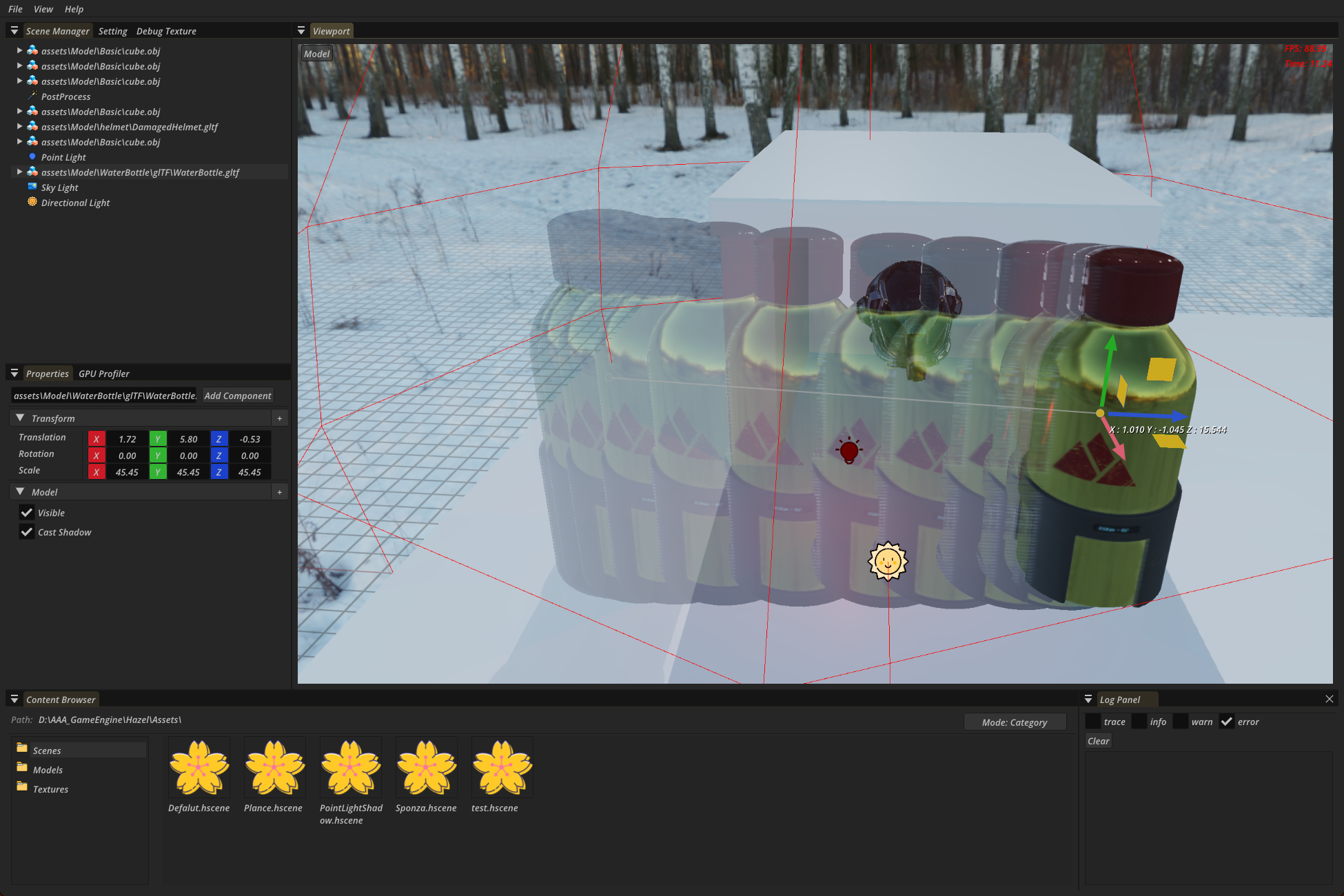

// fix 拖影：3x3邻域使用带抖动的UV，且钳位边界
vec3 AABBMin = RGBToYCoCg(curColor);
vec3 AABBMax = AABBMin;
for(int k = 0; k < 9; k++)
{
vec2 uvOffset = kOffsets3x3[k] * texelSize;
vec2 neighborUV = texCoordsWithJitter + uvOffset;
neighborUV = clamp(neighborUV, 0.0, 1.0);
vec3 C = RGBToYCoCg(texture(sampler2D(curTexture, SAMPLER[0]), neighborUV).rgb);
AABBMin = min(AABBMin, C);
AABBMax = max(AABBMax, C);
}

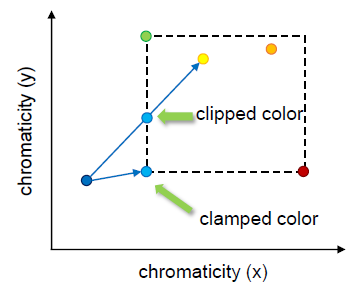

// Clip处理核心逻辑（无问题）
vec3 HistoryYCoCg = RGBToYCoCg(historyColor);
vec3 Filtered = (AABBMin + AABBMax) * 0.5f;
vec3 RayOrigin = HistoryYCoCg;
vec3 RayDir = Filtered - RayOrigin;
float epsilon = 1.0 / 65536.0;
RayDir = mix(vec3(epsilon), RayDir, greaterThan(abs(RayDir), vec3(epsilon)));
vec3 InvRayDir = 1.0 / RayDir;
vec3 MinIntersect = (AABBMin - RayOrigin) * InvRayDir;
vec3 MaxIntersect = (AABBMax - RayOrigin) * InvRayDir;
vec3 EnterIntersect = min(MinIntersect, MaxIntersect);
float ClipBlend = max(EnterIntersect.x, max(EnterIntersect.y, EnterIntersect.z));
ClipBlend = clamp(ClipBlend, 0.0, 1.0);
vec3 ResultYCoCg = mix(HistoryYCoCg, Filtered, ClipBlend);
historyColor = YCoCgToRGB(ResultYCoCg);

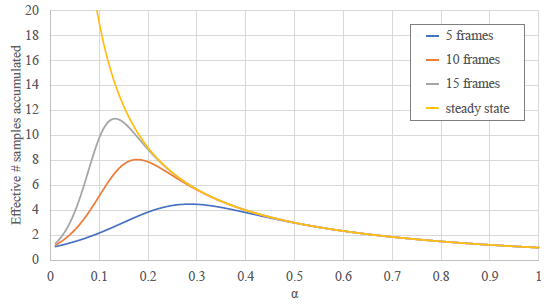

float motionLength = length(velocity);
float blendFactor = Saturate(0.05 + motionLength * 1000.0);
bool valid = (historyTexCoords.x >= 0.0 && historyTexCoords.x <= 1.0) &&
(historyTexCoords.y >= 0.0 && historyTexCoords.y <= 1.0);
if (!valid) {blendFactor = 1.0;}
if (GetPostprocessSetting().TaaSetting.shaper == 1)
{
float strength = GetPostprocessSetting().TaaSetting.shaperStrength;
vec2 topUV = clamp(texCoordsWithJitter + vec2(0.0, -texelSize.y), 0.0, 1.0);
vec2 leftUV = clamp(texCoordsWithJitter + vec2(-texelSize.x, 0.0), 0.0, 1.0);
vec2 rightUV = clamp(texCoordsWithJitter + vec2(texelSize.x, 0.0), 0.0, 1.0);
vec2 bottomUV = clamp(texCoordsWithJitter + vec2(0.0, texelSize.y), 0.0, 1.0);
vec3 topColor = RGBToYCoCg(texture(sampler2D(curTexture, SAMPLER[0]), topUV).rgb);
vec3 leftColor = RGBToYCoCg(texture(sampler2D(curTexture, SAMPLER[0]), leftUV).rgb);
vec3 centerColor = RGBToYCoCg(curColor);
vec3 rightColor = RGBToYCoCg(texture(sampler2D(curTexture, SAMPLER[0]), rightUV).rgb);
vec3 bottomColor = RGBToYCoCg(texture(sampler2D(curTexture, SAMPLER[0]), bottomUV).rgb);
vec3 sharpenSum = vec3(0.0);
sharpenSum += (-1.0 * strength) * topColor;
sharpenSum += (-1.0 * strength) * leftColor;
sharpenSum += (5.0 * strength) * centerColor;
sharpenSum += (-1.0 * strength) * rightColor;
sharpenSum += (-1.0 * strength) * bottomColor;
vec3 sharpenedColor = YCoCgToRGB(sharpenSum);
sharpenedColor = max(sharpenedColor, vec3(0.0));
curColor = sharpenedColor;
}
// HDR需要先转为LDRmix后再恢复， 如果不这样，目前测试发现会出现一个黑点，然后移动后越来越大
historyColor = ToneMapping(max(historyColor, 0.0f));
curColor = ToneMapping(max(curColor, 0.0f));
vec3 mixColor = mix(historyColor, curColor, blendFactor);
mixColor = InverseToneMapping(max(mixColor, 0.0f));
imageStore(out_texture, invocID, vec4(mixColor, 1.0));
}
#endif
|
