#version 450 core
#include "../common/common.glsl"
#include "../common/math.glsl"
#ifdef COMPUTE_SHADER
layout(set = 1, binding = 0, rgba32f) uniform image2D OUT_COLOR;
layout(set = 1, binding = 1, rgba32f) uniform image2D IN_COLOR;
layout(set = 1,binding = 2, rgba32f) uniform image2D velocityTexture;
layout(push_constant) uniform Uniforms
{
    int curPassIndex; // 当前 Atrous pass 索引
};

layout(local_size_x = 16, local_size_y = 16, local_size_z = 1) in;

void main(){
    ivec2 invocID = ivec2(gl_GlobalInvocationID.xy);
    ivec2 imgSize = ivec2(imageSize(OUT_COLOR));
    if (invocID.x >= imgSize.x || invocID.y >= imgSize.y)
        return;

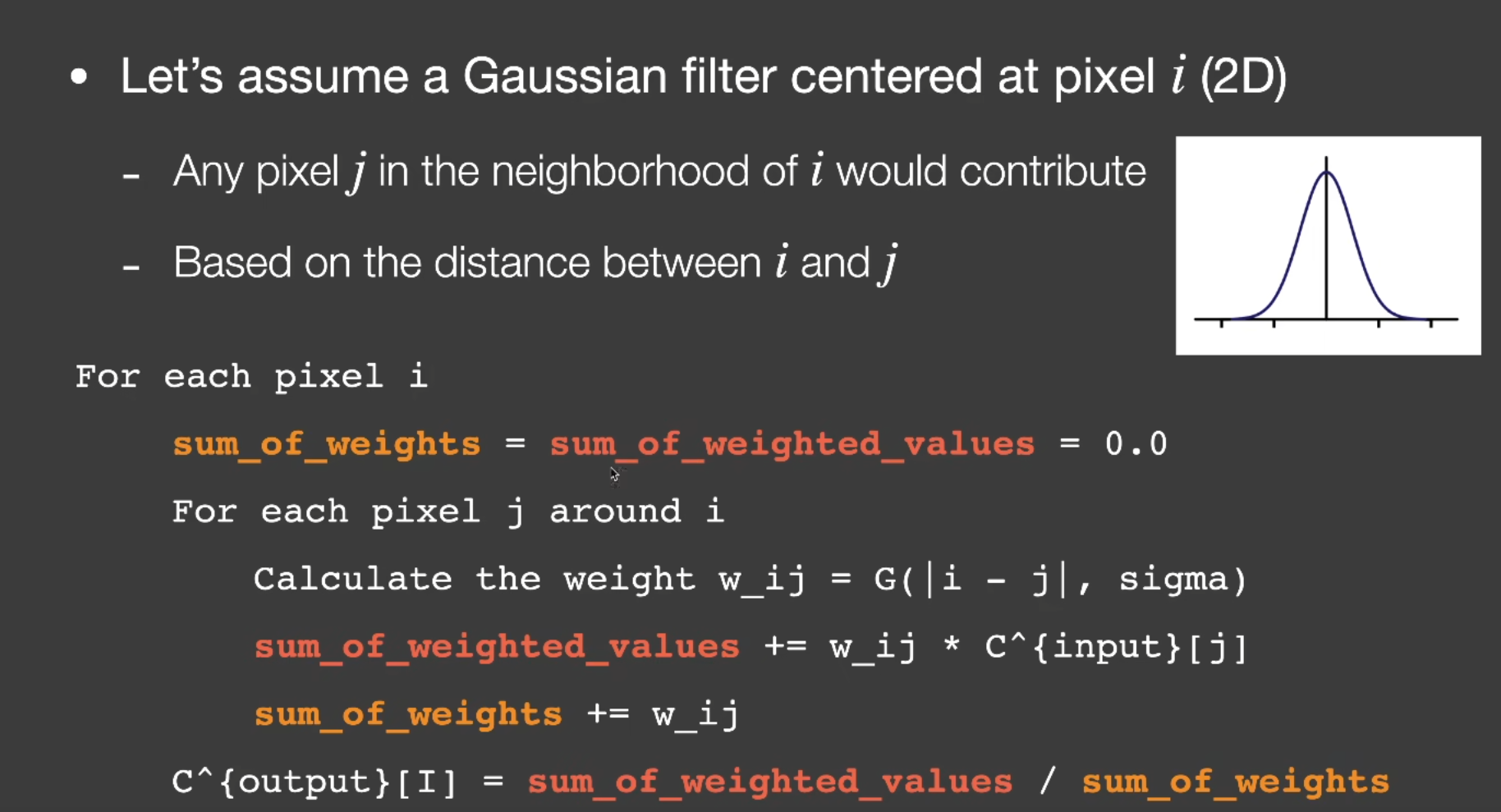

    vec3 colorSum = vec3(0.0);
    float weightSum = 0.0;

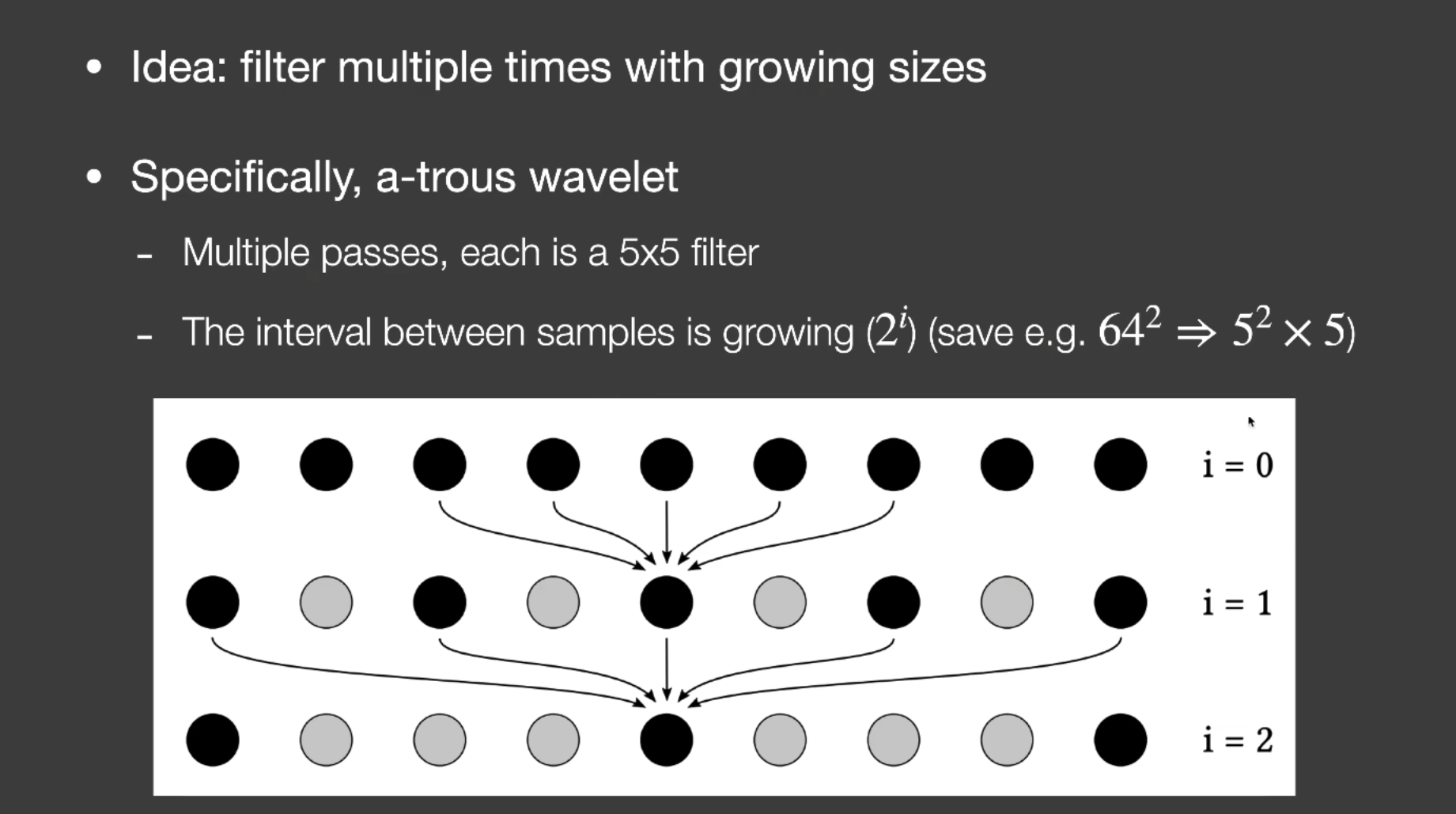

    // 5x5 Atrous 核心 做了空洞滤波，相当于64*64的卷积核
    int curStep = 1 << curPassIndex;
    for (int dy = -2; dy <= 2; ++dy) {
        for (int dx = -2; dx <= 2; ++dx) {
            ivec2 samplePos = invocID + ivec2(dx, dy) * curStep;

            // 边界检查
            samplePos = clamp(samplePos, ivec2(0), imgSize - 1);

            vec3 sampleColor = imageLoad(IN_COLOR, samplePos).xyz;

            // Atrous 权重，这里先用 1.0，之后可以换成高斯或 bilateral 权重
            float weight = 1.0;

            colorSum += sampleColor * weight;
            weightSum += weight;
        }
    }

    vec3 result = colorSum / weightSum;
    imageStore(OUT_COLOR, invocID, vec4(result, 1.0));
}
#endif

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103

#include "hzpch.h"
#include "SVGFPass.h"
#include "Hazel/Core/Application.h"
#include "Hazel/Scene/SceneManager.h"
#include "Hazel/Renderer/RenderResource/RenderResourceManager.h"
#include "Hazel/Renderer/RenderResource/PipelineCache.h"
#include <Hazel/Renderer/RenderResource/Shader.h>
namespace GameEngine {
	void SVGFPass::Init()
	{
		m_Shader = std::make_shared<Shader>("postprocess/SVGF", SHADER_FREQUENCY_COMPUTE)->GetRHIShader();
		RHIRootSignatureInfo info = {};
		info.AddEntryFromReflect(m_Shader);
		info.AddEntry(RENDER_RESOURCEMANAGER->GetGlobalResourcePreFrameRootSignature()->GetInfo())
			.AddPushConstant({4,SHADER_FREQUENCY_COMPUTE });
		m_RootSignature = APP_DYNAMICRHI->CreateRootSignature(info);
		RHIComputePipelineInfo pipelineInfo = {};
		pipelineInfo.computeShader = m_Shader;
		pipelineInfo.rootSignature = m_RootSignature;
		m_Pipeline = APP_DYNAMICRHI->CreateComputePipeline(pipelineInfo);
	}

	void SVGFPass::Build(RDGBuilder& builder)
	{
		auto& [w, h] = APP_WINDOWSIZE;
		RDGTextureHandle pathTracingDirectRes = builder.GetTexture("PathTracingdirectRes");
		if (pathTracingDirectRes.ID() == UINT32_MAX) { return; }
		RDGTextureHandle pathTracingIndirectRes = builder.GetTexture("PathTracingIndirectRes");
		RDGTextureHandle velocity = builder.GetTexture("GBufferVelocity");
		RDGBufferHandle exposureData = builder.GetBuffer("ExposureData");

		RDGTextureHandle directFilterRes = builder.CreateTexture("PathTracing_SVGF_directFilterRes")
			.Exetent({ w, h ,1 })
			.Format(FORMAT_R32G32B32A32_SFLOAT)
			.AllowRenderTarget()
			.AllowReadWrite()
			.Finish();

		RDGTextureHandle forPinpongTexture = builder.CreateTexture("PathTracing_SVGF_forPinpongTexture")
			.Exetent({ w, h ,1 })
			.Format(FORMAT_R32G32B32A32_SFLOAT)
			.AllowRenderTarget()
			.AllowReadWrite()
			.Finish();


		RDGTextureHandle inDirectFilterRes = builder.CreateTexture("PathTracing_SVGF_inDirectFilterRes")
			.Exetent({ w, h ,1 })
			.Format(FORMAT_R32G32B32A32_SFLOAT)
			.AllowRenderTarget()
			.AllowReadWrite()
			.Finish();



		// 直接光
		for (int i = 0; i < 5; i++) {
			builder.CreateComputePass(GetName() + "_DirectRes" + std::to_string(i))
				.RootSignature(m_RootSignature)
				.PassIndex(i)
				.ReadWrite(1, 0, 0, i == 0 ? directFilterRes : i % 2 == 1 ? forPinpongTexture : directFilterRes)
				.ReadWrite(1, 1, 0, i == 0 ? pathTracingDirectRes : i % 2 == 1 ? directFilterRes : forPinpongTexture)
				.ReadWrite(1, 2, 0, velocity)
				.Execute([&](RDGPassContext context) {
				auto& [w, h] = APP_WINDOWSIZE;
				RHICommandListRef command = context.command;
				command->SetComputePipeline(m_Pipeline);
				command->BindDescriptorSet(context.descriptors[1], 1);
				uint32_t curIndex = context.passIndex[0];
				command->PushConstants(&curIndex, sizeof(uint32_t), SHADER_FREQUENCY_COMPUTE);
				command->BindDescriptorSet(RENDER_RESOURCEMANAGER->GetGlobalResourcePerFrameDescriptorSet(), 0);
				command->Dispatch((w + 15) / 16, (h + 15) / 16, 1);
					})
				.Finish();
		}



		// 间接光
		for (int i = 0; i < 5; i++) {
			builder.CreateComputePass(GetName() + "_DirectRes" + std::to_string(i))
				.RootSignature(m_RootSignature)
				.PassIndex(i)
				.ReadWrite(1, 0, 0, i == 0 ? inDirectFilterRes : i % 2 == 1 ? forPinpongTexture : inDirectFilterRes)
				.ReadWrite(1, 1, 0, i == 0 ? pathTracingIndirectRes : i % 2 == 1 ? inDirectFilterRes : forPinpongTexture)
				.ReadWrite(1, 2, 0, velocity)
				.Execute([&](RDGPassContext context) {
				auto& [w, h] = APP_WINDOWSIZE;
				RHICommandListRef command = context.command;
				command->SetComputePipeline(m_Pipeline);
				command->BindDescriptorSet(context.descriptors[1], 1);
				uint32_t curIndex = context.passIndex[0];
				command->PushConstants(&curIndex, sizeof(uint32_t), SHADER_FREQUENCY_COMPUTE);
				command->BindDescriptorSet(RENDER_RESOURCEMANAGER->GetGlobalResourcePerFrameDescriptorSet(), 0);
				command->Dispatch((w + 15) / 16, (h + 15) / 16, 1);
					})
				.Finish();
		}


	}

}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

// 5x5 Atrous 核心 做了空洞滤波，相当于64*64的卷积核
uint curStep = 1 << curPassIndex;
for (int dy = -2; dy <= 2; ++dy) {
    for (int dx = -2; dx <= 2; ++dx) {
        ivec2 samplePos = invocID + ivec2(dx, dy) * int(curStep);

        // 边界检查
        samplePos = clamp(samplePos, ivec2(0), imgSize - 1);

        vec3 sampleColor = imageLoad(IN_COLOR, samplePos).xyz;
        // 高斯
        float gaussWeight = gaussKernel5x5[dx + 2 + (dy + 2) * 5];

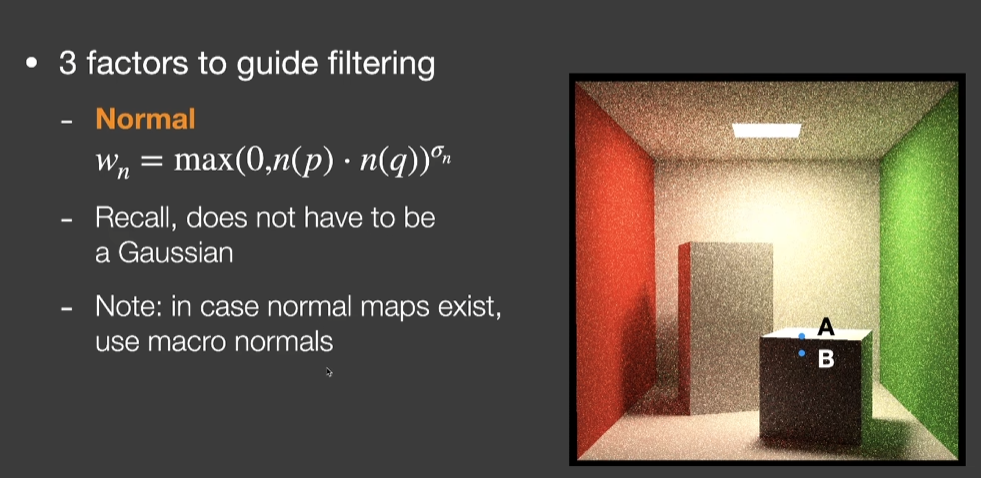

        // 法线
        vec3 sampleNormal = imageLoad(NORMAL, samplePos).xyz;
        float normalWeight = pow(max(dot(normal, sampleNormal), 0.0), 128.0);

        float weight = gaussWeight*normalWeight;

        colorSum += sampleColor * weight;
        weightSum += weight;
    }
}
